The growth of GaN epitaxy on GaN substrate presents a unique challenge, despite the material’s superior properties when compared to silicon. GaN epitaxy offers significant advantages in terms of band gap width, thermal conductivity, and breakdown electric field over silicon-based materials. This makes the adoption of GaN as the backbone for the third generation of semiconductors, which provide enhanced cooling, lower conduction loss, and improved performance under high temperatures and frequencies, a promising and crucial advancement for the photonic and micro-electronic industries.

Silicon Carbide generally uses the PVT method, with a temperature of more than 2000 degrees, a long processing cycle, and low output, so the cost of Silicon Carbide substrates is very high.

Silicon carbide (SiC) has important applications in areas such as power electronics, high-frequency RF devices, and sensors for high-temperature-resistant environments due to its excellent physicochemical properties. However, the slicing operation during SiC wafer processing introduces damages on the surface, which, if left untreated, can expand during the subsequent epitaxial growth process and form epitaxial defects, thus affecting the yield of the device.

Ion implantation is a method of semiconductor doping and one of the main processes in semiconductor manufacturing.

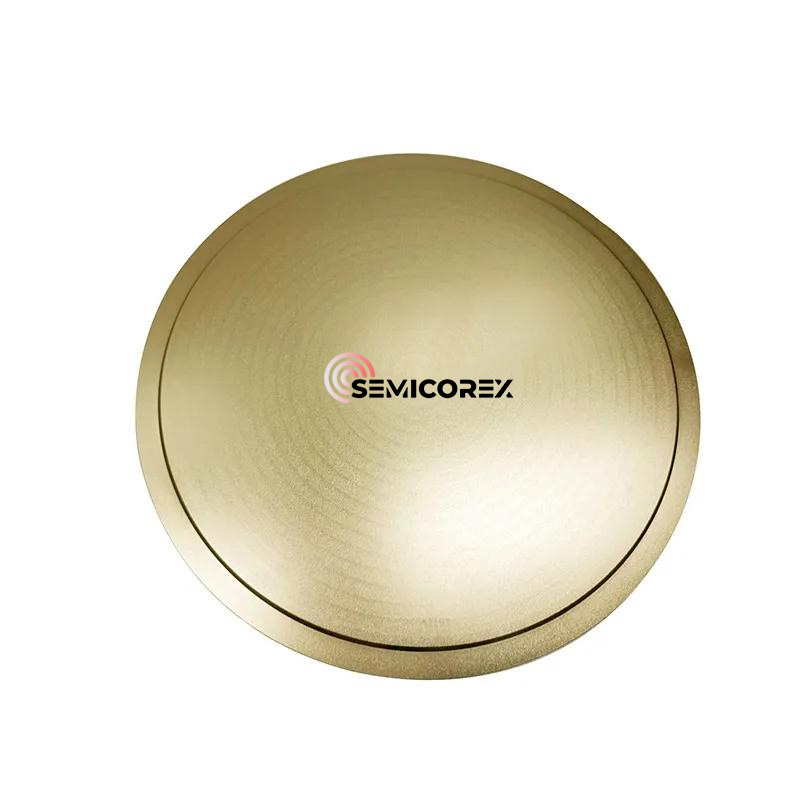

Tantalum carbide coating is an important high-strength, corrosion-resistant and chemically stable high-temperature structural material with a melting point of up to 4273 °C, one of the several compounds with the highest temperature resistance. It has excellent high-temperature mechanical properties, resistance to high-speed airflow scouring, ablation resistance, and good chemical and mechanical compatibility with graphite and carbon/carbon composites. Therefore, in the epitaxial process of GaN LEDs and SiC power devices such as MOCVD, TaC coating has excellent acid and alkali resistance to H2, HCl, NH3, which can completely protect the graphite substrate material and purify the growth environment.

The push for higher power density and efficiency has become a primary driver of innovation across multiple industries, including data centers, renewable energy, consumer electronics, electric vehicles, and autonomous driving technologies. In the realm of wide bandgap (WBG) materials, Gallium Nitride (GaN) and Silicon Carbide (SiC) are currently the two core platforms, viewed as pivotal tools leading power semiconductor innovation. These materials are profoundly transforming the power electronics industry to address the ever-increasing demand for power.
