Graphite Insulation Shield

Semicorex Graphite Insulation Shield, manufactured from rigid graphite felt (hard felt), is specifically designed for use in high-temperature thermal field (hot zone) systems. With excellent insulation performance, structural stability, and high-temperature resistance, this component plays a vital role in optimizing furnace efficiency and extending equipment lifespan.

The Graphite Insulation Shield functions as a protective barrier within the hot zone of high-temperature furnaces, helping to maintain uniform temperature distribution while minimizing heat loss. Its carefully engineered structure provides both mechanical strength and outstanding thermal insulation, making it ideal for demanding applications such as crystal growth furnaces, high-temperature sintering systems, and advanced semiconductor processing equipment.

High-Quality Rigid Graphite Felt Material

The Graphite Insulation Shield is fabricated from rigid graphite felt, a specialized carbon-based insulation material widely used in high-temperature thermal systems. Unlike flexible graphite felt, rigid graphite felt undergoes a reinforcement process that increases its structural strength while maintaining excellent thermal insulation performance.

This material provides several key advantages for hot zone applications:

• Excellent resistance to extremely high temperatures
• Low thermal conductivity for superior insulation performance
• High structural stability in vacuum or inert gas environments
• Strong resistance to thermal shock and rapid temperature changes

These characteristics allow the insulation shield to operate reliably in furnace environments that often exceed 2000°C, ensuring long-term thermal stability.

Optimized Thermal Field Performance

In high-temperature furnaces, maintaining a stable and uniform thermal field is essential for process consistency and product quality. The Semicorex Graphite Insulation Shield helps optimize the thermal environment by reducing heat loss and stabilizing internal furnace temperatures.

By acting as an insulation barrier, the shield effectively:

Reflects and retains heat within the furnace hot zone

Reduces energy consumption by minimizing heat dissipation

Maintains temperature uniformity throughout the chamber

Protects surrounding components from excessive heat exposure

This improved thermal efficiency contributes to higher process stability and reduced operational costs.

Lightweight Structure with Excellent Mechanical Strength

Despite its robust performance in extreme environments, rigid graphite felt remains relatively lightweight compared with traditional dense refractory materials. This lightweight property reduces the mechanical load on furnace support structures and simplifies installation.

At the same time, the rigidized structure provides sufficient mechanical strength to maintain its shape and stability during prolonged high-temperature operation. The component resists deformation and maintains its insulation integrity even under repeated heating cycles.

High Purity and Clean Processing Environment

For advanced industrial applications such as semiconductor manufacturing or crystal growth processes, material purity is extremely important. The Semicorex Graphite Insulation Shield is produced using high-purity graphite materials, ensuring minimal contamination during operation.

The low impurity content helps maintain a clean thermal environment, which is essential for sensitive processes where contamination can affect material quality and product performance.

Customizable Design for Various Furnace Systems

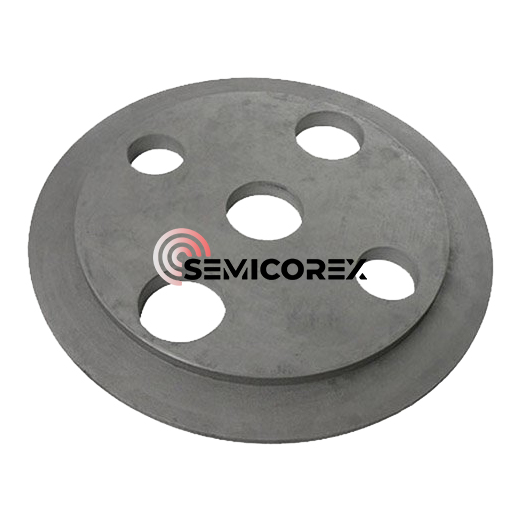

The Graphite Insulation Shield can be manufactured in a variety of shapes, sizes, and structural configurations to meet different furnace designs and thermal field requirements. The component shown in the image features a circular plate structure with multiple precision openings, enabling integration with heating elements, support structures, or gas flow systems.

Semicorex provides both standard and customized solutions, including:

Custom diameters and thicknesses

Precision machined openings and mounting features

Optimized insulation structures for specific furnace designs

Tailored thermal field configurations for different processes

This flexibility allows the insulation shield to be adapted for a wide range of high-temperature equipment.

Long Service Life and Reliable Performance

Thanks to the inherent properties of rigid graphite felt, the insulation shield offers excellent durability in demanding furnace conditions. Its resistance to high temperatures, thermal shock, and chemical stability ensures consistent performance over extended operational cycles.

The result is a long service life with reduced maintenance requirements, helping operators maintain stable furnace performance while minimizing downtime.

ApplicationsSemicorex Graphite Insulation Shields are widely used in various high-temperature industrial systems, including:

Crystal growth furnaces

High-temperature vacuum furnaces

Semiconductor material processing equipment

Sintering and heat treatment furnaces

Advanced materials manufacturing systems

These insulation components play a crucial role in improving thermal efficiency and maintaining precise temperature control in modern high-temperature processing environments.
