Silicon Carbide Wafer Cassette

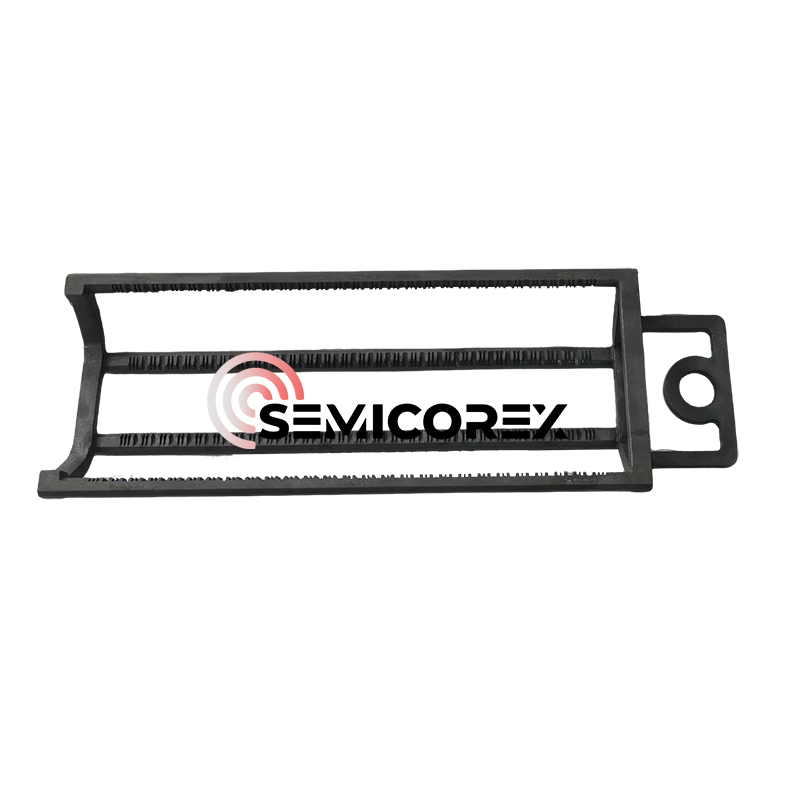

Semicorex Silicon Carbide Wafer Cassette is a precision-engineered wafer carrier designed to securely hold and transport semiconductor wafers throughout high-temperature and contamination-sensitive processes. Manufactured using advanced silicon carbide (SiC) ceramic materials and cutting-edge 3D printing technology, this cassette ensures exceptional dimensional accuracy, thermal stability, and mechanical reliability. Its cassette-style structure firmly supports wafers, minimizing movement, vibration, and potential damage during processing.

Optimized Cassette Design for Wafer Stability

The  Silicon Carbide Wafer Cassette is designed with a multi-slot structure that precisely positions each wafer, preventing lateral movement and reducing the risk of collision or edge chipping. The rigid frame and carefully engineered slot spacing ensure that wafers remain securely fixed, even during handling, transport, or exposure to process gases and thermal gradients.

This design is particularly critical in semiconductor manufacturing, where even minor wafer displacement can lead to defects, yield loss, or contamination. The stable support system enhances process consistency and protects high-value wafers throughout the production cycle.

Material Advantages: High-Purity Silicon Carbide

Silicon carbide ceramics are widely used in semiconductor environments due to their outstanding material properties. The wafer cassette is fabricated from ultra-high purity SiC, ensuring minimal contamination and compatibility with advanced fabrication processes.

Key material benefits include:

High Temperature Resistance: Maintains structural integrity in extreme thermal environments

Excellent Thermal Conductivity: Promotes uniform heat distribution across wafers

Chemical Inertness: Resistant to corrosive gases and reactive process environments

Low Particle Generation: Critical for cleanroom and high-purity applications

High Mechanical Strength: Supports wafers without deformation or sagging

Optional CVD (Chemical Vapor Deposition) coatings can be applied to further enhance surface purity, wear resistance, and chemical stability, making the cassette suitable for the most demanding semiconductor processes.

Precision Manufacturing with 3D Printing Technology

The use of advanced 3D printing technology allows for highly precise and repeatable manufacturing of complex cassette geometries. This enables:

Tight dimensional tolerances for accurate wafer positioning

Customizable slot configurations and spacing

Reduced material waste and improved production efficiency

Consistent quality across batches

3D printing also allows rapid prototyping and customization, ensuring that the cassette can be tailored to specific process requirements or equipment designs.

Customizable Design Options

Semicorex offers full customization capabilities to meet diverse application needs. Wafer cassettes can be manufactured in various sizes, shapes, and configurations, supporting different wafer diameters and process conditions. Whether for standard semiconductor wafers or specialized substrates, the design can be optimized for compatibility with existing equipment and workflows.

Applications

Silicon Carbide Wafer Cassettes are widely used in advanced semiconductor and high-temperature processing environments, including:

• Chemical Vapor Deposition (CVD) systems
• Epitaxial growth processes

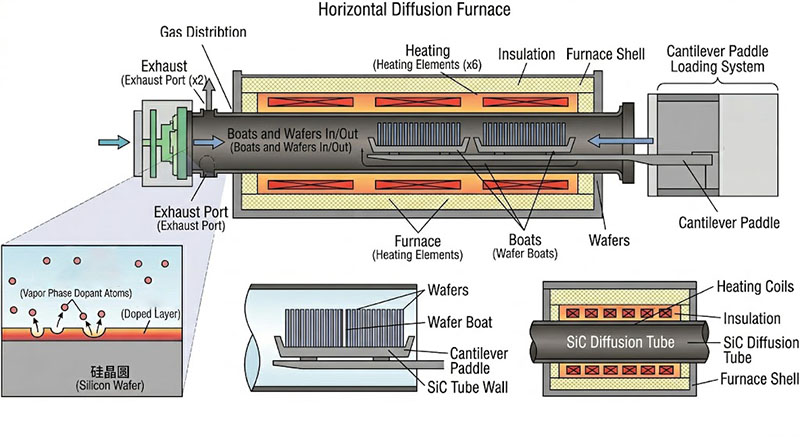

• Diffusion and annealing furnaces
• Wafer cleaning and handling systems
• SiC and silicon wafer manufacturing

Their ability to maintain wafer stability and purity makes them essential for achieving high yield and consistent product quality.

Reliability and Process Performance

By combining high-purity materials with precision engineering, the Silicon Carbide Wafer Cassette delivers reliable performance under extreme conditions. Its resistance to thermal shock, chemical corrosion, and mechanical stress ensures long service life and reduced maintenance requirements.

The stable wafer support structure minimizes vibration and movement, directly contributing to improved process uniformity and reduced defect rates.

Semicorex Silicon Carbide Wafer Cassette is a high-performance wafer carrier designed for modern semiconductor manufacturing. With its robust cassette structure, advanced SiC material, optional CVD coating, and customizable design, it provides a reliable solution for secure wafer handling in high-temperature and high-purity environments. It is an essential component for manufacturers seeking precision, durability, and consistent process results.
