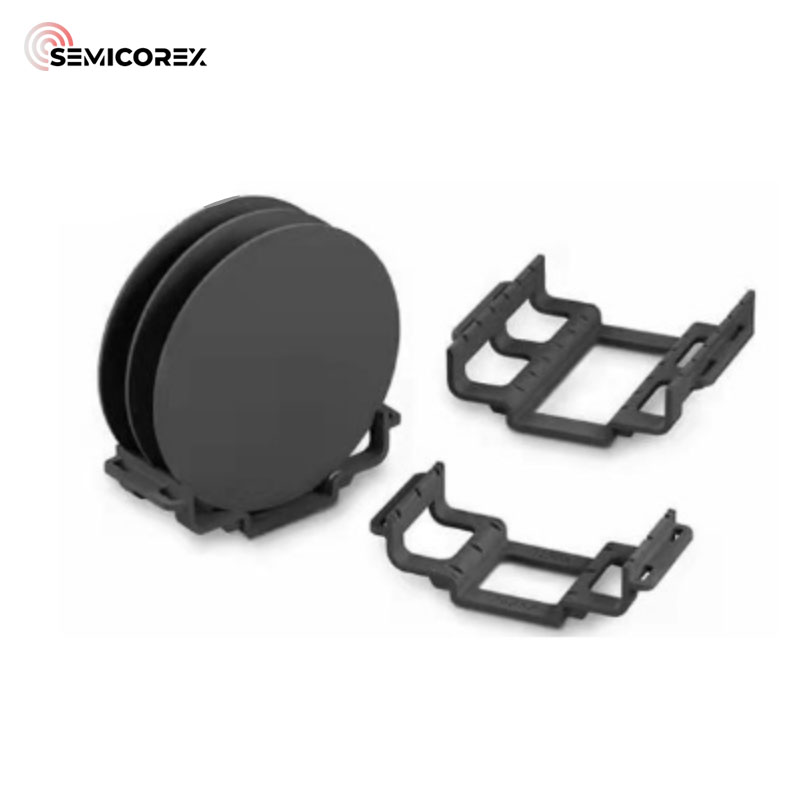

Silicon Carbide Wafer Boat
  • Silicon Carbide Wafer BoatSilicon Carbide Wafer Boat
  • Silicon Carbide Wafer BoatSilicon Carbide Wafer Boat
  • Silicon Carbide Wafer BoatSilicon Carbide Wafer Boat
  • Silicon Carbide Wafer BoatSilicon Carbide Wafer Boat
  • Silicon Carbide Wafer BoatSilicon Carbide Wafer Boat

Silicon Carbide Wafer Boat

Semicorex engineers semiconductor-grade ceramics for your OEM semi fabrication tools and wafer handling components. Our Silicon Carbide Wafer Boat has a good price advantage and cover many of the European and American markets. We look forward to becoming your long-term partner in China.

Send Inquiry

Product Description

Semicorex's Silicon Carbide Wafer Boat, featuring extremely high purity (up to 99.99%), excellent plasma resistance and heat resistance, and restricted particle occurrence, is used in semiconductor processing equipment parts, including structural components and tools.
At Semicorex, we focus on providing high-quality, cost-effective Silicon Carbide Wafer Boat, we prioritize customer satisfaction and provide cost-effective solutions. We look forward to becoming your long-term partner, delivering high-quality products and exceptional customer service.
Contact us today to learn more about our Silicon Carbide Wafer Boat.


Parameters of Silicon Carbide Wafer Boat

Technical Properties

Index

Unit

Value

Material Name

Reaction Sintered Silicon Carbide

Pressureless Sintered Silicon Carbide

Recrystallized Silicon Carbide

Composition

RBSiC

SSiC

R-SiC

Bulk Density

g/cm3

3

3.15 ± 0.03

2.60-2.70

Flexural Strength

MPa (kpsi)

338(49)

380(55)

80-90 (20°C) 90-100(1400°C)

Compressive Strength

MPa (kpsi)

1120(158)

3970(560)

> 600

Hardness

Knoop

2700

2800

/

Breaking Tenacity

MPa m1/2

4.5

4

/

Thermal Conductivity

W/m.k

95

120

23

Coefficient of Thermal Expansion

10-6.1/°C

5

4

4.7

Specific Heat

Joule/g 0k

0.8

0.67

/

Max temperature in air

1200

1500

1600

Elastic Modulus

Gpa

360

410

240


The difference between SSiC and RBSiC:

1. Sintering process is different. RBSiC is to infiltrate free Si into silicon carbide at a low temperature, SSiC is formed by natural shrinkage at 2100 degrees.

2. SSiC have smoother surface, higher density and higher strength, for some sealings with more strict surface requirements, SSiC will be better.

3. Different used time under different PH and temperature, SSiC is longer than RBSiC


Features of Silicon Carbide Wafer Boat

Superior heat resistance & thermal uniformity
Fine SiC crystal coated for a smooth surface
High durability against chemical cleaning
Material is designed so that cracks and delamination do not occur.
