Silicon Carbide SiC Vacuum Chucks

Silicon Carbide SiC Vacuum Chucks are high-performance wafer holding components designed for advanced semiconductor manufacturing processes that demand exceptional flatness, thermal stability, and contamination control. Widely used in wafer processing, lithography, inspection, grinding, dicing, and precision positioning systems, SiC vacuum chucks provide reliable vacuum adsorption and ultra-stable wafer support for both silicon and compound semiconductor substrates.

Semicorex supplies high-purity Silicon Carbide Vacuum Chucks to customers worldwide, supporting semiconductor, LED, MEMS, and advanced electronics manufacturing with precision-engineered ceramic solutions.

What Are Silicon Carbide Vacuum Chucks?

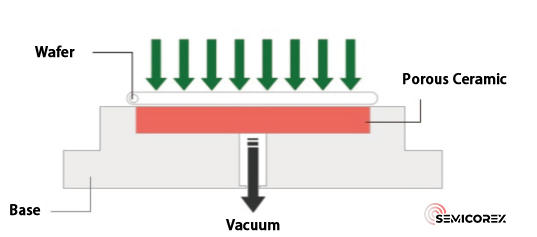

A Silicon Carbide Vacuum Chuck is a precision platform that uses vacuum pressure to securely hold semiconductor wafers during processing. Compared with traditional metal or alumina ceramic chucks, SiC vacuum chucks offer superior rigidity, excellent thermal conductivity, low thermal expansion, and outstanding wear resistance.

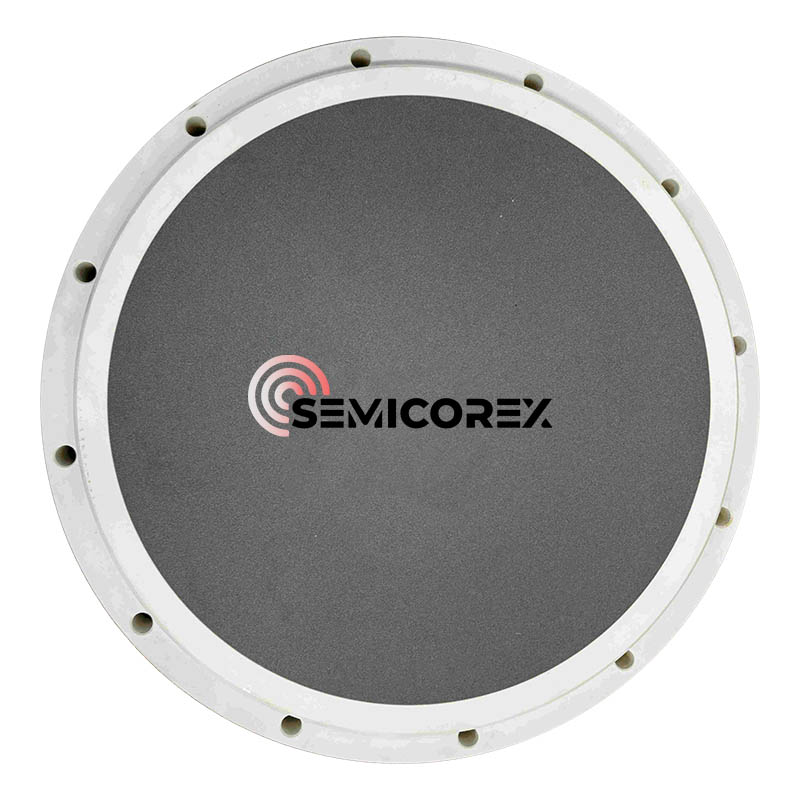

The product shown features a dense SiC ceramic surface combined with precision vacuum hole distribution, enabling uniform wafer adsorption and minimized particle generation. The highly stable structure ensures reliable wafer positioning even under demanding thermal and mechanical operating conditions.

SiC vacuum chucks are particularly suitable for high-precision semiconductor applications where dimensional accuracy, surface quality, and process repeatability are critical.

Key Features of SiC Vacuum Chucks

Exceptional Thermal Stability

Silicon carbide possesses an extremely low coefficient of thermal expansion, allowing the chuck to maintain excellent dimensional stability across a wide temperature range. This characteristic is essential for semiconductor processes involving thermal cycling or localized heating.

Stable thermal performance helps reduce wafer warpage, alignment deviation, and process variation, ultimately improving yield and consistency.

High Thermal Conductivity

Compared with many conventional ceramics, SiC offers significantly higher thermal conductivity. This enables rapid heat transfer and uniform temperature distribution across the wafer surface.

Efficient thermal management is especially beneficial in applications such as:

* Wafer inspection

* Lithography

* Plasma processing

* Wafer bonding

* Thin wafer handling

* Grinding and polishing

Uniform temperature distribution contributes to improved process precision and reduced thermal stress.

Ultra-High Rigidity and Flatness

Dense sintered silicon carbide provides outstanding mechanical strength and stiffness. The high rigidity minimizes deformation under vacuum load, ensuring excellent wafer flatness during operation.

Precision-machined SiC vacuum chucks can achieve extremely tight flatness tolerances, supporting advanced semiconductor nodes and high-resolution processing requirements.

Excellent Wear and Corrosion Resistance

Semiconductor production environments often involve abrasive contact, corrosive gases, and chemically aggressive cleaning processes. Silicon carbide demonstrates excellent resistance to:

* Plasma erosion

* Chemical corrosion

* Mechanical wear

* Particle generation

This durability extends service life and reduces maintenance frequency, helping lower overall operating costs.

High Purity and Low Contamination

Contamination control is critical in semiconductor manufacturing. High-purity SiC ceramics exhibit low outgassing and minimal particle release, making them suitable for cleanroom environments and sensitive wafer processes.

The non-metallic ceramic structure also helps avoid unwanted metallic contamination during wafer handling.

Applications of Silicon Carbide Vacuum Chucks

SiC vacuum chucks are widely used throughout semiconductor and electronics manufacturing industries, including:

Semiconductor Wafer Processing

They are commonly applied in wafer transport, positioning, alignment, and support systems for silicon wafers, SiC wafers, GaN wafers, and sapphire substrates.

Wafer Grinding and Thinning

The high rigidity and excellent flatness of SiC chucks provide stable support during back grinding and ultra-thin wafer processing.

Lithography and Inspection Equipment

Dimensional stability and low thermal expansion make SiC vacuum chucks ideal for precision optical and lithography systems.

MEMS and Advanced Packaging

In MEMS fabrication and advanced packaging processes, vacuum chucks help maintain precise substrate positioning during bonding, assembly, and inspection operations.

Compound Semiconductor Manufacturing

SiC vacuum chucks are increasingly used in the production of power devices, RF devices, LEDs, and other compound semiconductor applications where thermal performance and cleanliness are essential.

Why Choose Semicorex SiC Vacuum Chucks?

Semicorex focuses on advanced semiconductor material solutions with strict quality control and precision manufacturing capabilities. Our Silicon Carbide Vacuum Chucks are manufactured using high-density SiC ceramic materials and advanced machining technologies to ensure:

* High dimensional accuracy

* Excellent surface finish

* Uniform vacuum distribution

* Superior thermal performance

* Long operational lifetime

* Reliable semiconductor-grade cleanliness

We support customized sizes, vacuum channel designs, hole configurations, and surface specifications according to customer equipment requirements.

With extensive experience in semiconductor process components, Semicorex delivers reliable SiC ceramic solutions for next-generation wafer manufacturing and precision industrial applications worldwide.
