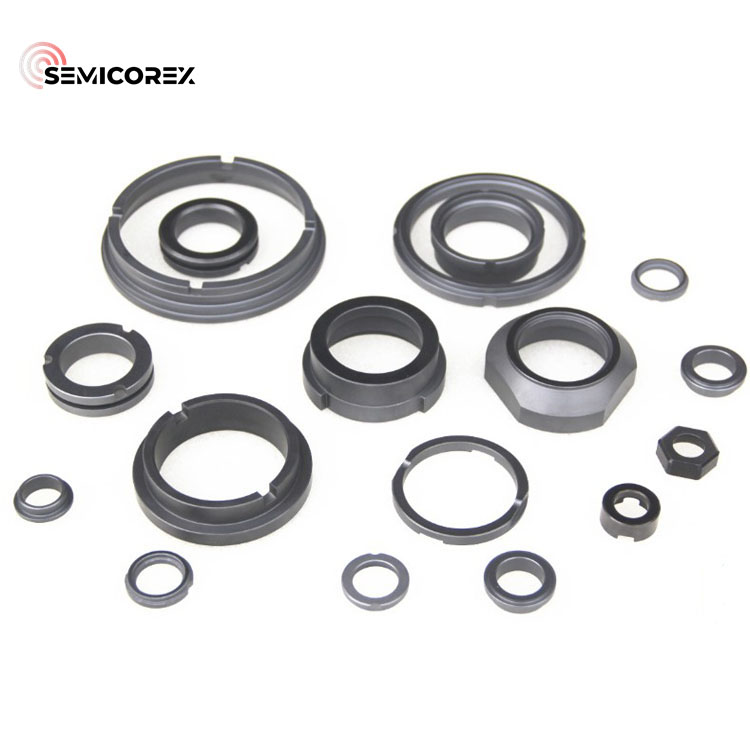

Mechanical Seal Parts

Semicorex is a large-scale manufacturer and supplier of Silicon Carbide Coated Ceramic in China. We focus on semiconductor industries such as silicon carbide layers and epitaxy semiconductor. Our Mechanical Seal Parts have a good price advantage and cover many of the European and American markets. We look forward to becoming your long-term partner in China.

Send Inquiry

Product Description

Semicorex silicon carbide Mechanical Seal Parts offer tribological performance under high load, including pressure, sliding speed and temperature. Components manufactured from silicon carbide provide long-lasting service due to its high resistance to wear, resistance to corrosion in aggressive media and thermal shock resistance with low distortion under thermal loads.
Our Mechanical Seal Parts can be customized for your unique application. The specialists will assist you with initial design and development, and our extensive and well-equipped manufacturing facilities allow us to quickly scale-up to full production.

Parameters of Mechanical Seal Parts

Technical Properties
Index	Unit	Value
Material Name		Reaction Sintered Silicon Carbide	Pressureless Sintered Silicon Carbide	Recrystallized Silicon Carbide
Composition		RBSiC	SSiC	R-SiC
Bulk Density	g/cm3	3	3.15 ± 0.03	2.60-2.70
Flexural Strength	MPa (kpsi)	338(49)	380(55)	80-90 (20°C) 90-100(1400°C)
Compressive Strength	MPa (kpsi)	1120(158)	3970(560)	> 600
Hardness	Knoop	2700	2800	/
Breaking Tenacity	MPa m1/2	4.5	4	/
Thermal Conductivity	W/m.k	95	120	23
Coefficient of Thermal Expansion	10^-6.1/°C	5	4	4.7
Specific Heat	Joule/g 0k	0.8	0.67	/
Max temperature in air	℃	1200	1500	1600
Elastic Modulus	Gpa	360	410	240

The difference between SSiC and RBSiC:

1. Sintering process is different. RBSiC is to infiltrate free Si into silicon carbide at a low temperature, SSiC is formed by natural shrinkage at 2100 degrees.

2. SSiC have smoother surface, higher density and higher strength, for some sealings with more strict surface requirements, SSiC will be better.

3. Different used time under different PH and temperature, SSiC is longer than RBSiC

Features of Mechanical Seal Parts

- High strength (Mohs hardness 9.5, second only to diamond)
- Corrosion resistance to acids, alkalis, salts and organic solvents
- High thermal conductivity, plasma resistance, long life
- Semiconductors

Available shapes of silicon carbide ceramics：

● Ceramic rod / ceramic pin / ceramic plunger

● Ceramic tube / ceramic bushing / ceramic sleeve

● Ceramic ring / ceramic washer / ceramic spacer

● Ceramic disc

● Ceramic plate / ceramic block

● Ceramic ball

● Ceramic piston

● Ceramic nozzle

● Ceramic crucible

● Other custom ceramic parts
