Silicon Carbide Membrane

Semicorex Silicon Carbide membrane is a high-performance filtration material commonly used in various advanced applications, particularly in industries requiring precise separation, concentration, and purification of fluids. The Silicon Carbide membrane is divided into two main types: pure Silicon Carbide (SiC) membranes and composite SiC membranes. The difference between the two lies primarily in the materials used, which ultimately affects their performance and suitability for specific processes.

The pure Silicon Carbide membrane is manufactured using a recrystallization technique, which involves high-temperature sintering of the highest purity SiC (greater than 99.5%) without the use of any sintering aids. This ensures that the membrane retains nearly all of the properties inherent to SiC materials, including outstanding hardness, thermal stability, and chemical resistance. In contrast, the composite Silicon Carbide membrane is made by mixing SiC with other materials, such as alumina and calcium oxide, which are also sintered together. While it maintains the core advantages of SiC, the composite membrane offers additional flexibility and can be tailored to specific operational conditions.

Key Features

Multichannel Tubular Structure Design

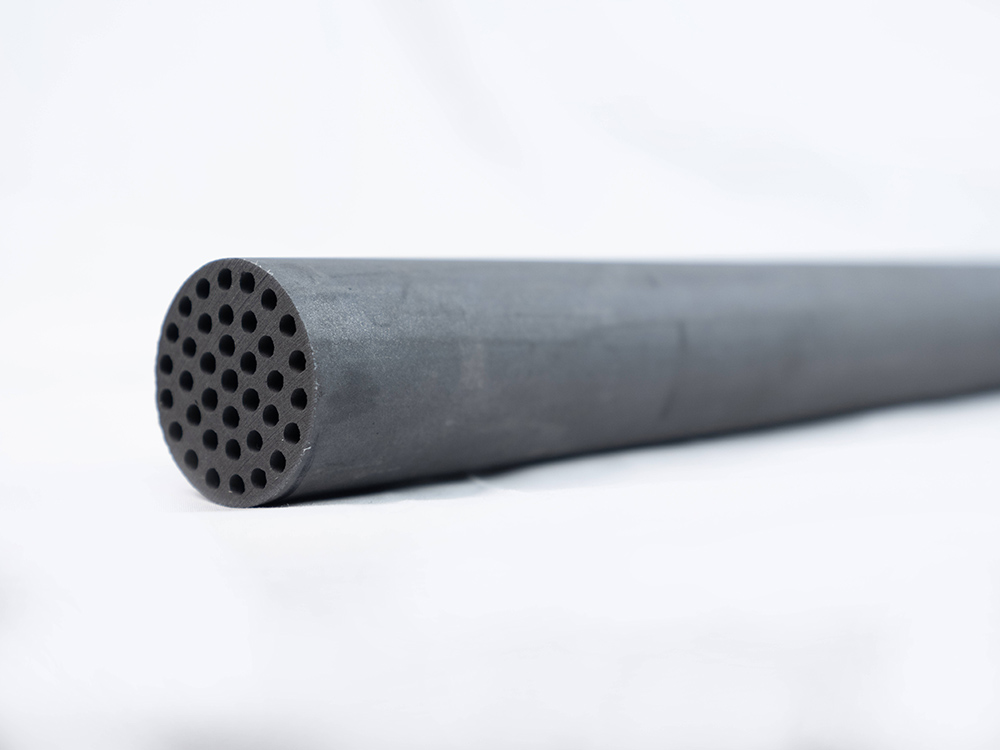

The Silicon Carbide membrane is designed with a multichannel tubular structure that operates using a cross-flow filtration method. This design enhances the separation process, where the feed liquid flows rapidly inside the membrane tubes. Under pressure, the permeate containing small molecular components passes through the membrane in a direction perpendicular to the flow, while the retentate, containing larger molecules, is retained. This unique cross-flow configuration significantly reduces fouling and clogging, as the membrane surface is continuously cleaned by the flowing liquid. As a result, the system can run efficiently for extended periods, maintaining high performance without significant maintenance interruptions.

Asymmetric Structure Design for Enhanced Backwashing

Silicon Carbide membrane is also engineered with an asymmetric structure, which further improves their cleaning and backwashing capabilities. High-frequency backwashing processes are incorporated into the system to dislodge contaminants from the membrane surface, restoring its filtration efficiency. This design feature ensures the long-term stable operation of the membrane, extending the interval between cleaning cycles. By using this advanced cleaning technique, SiC membranes can retain their excellent separation capabilities for a prolonged period, reducing operational downtime and associated costs.

Silicon Carbide membrane is exceptional and indispensable materials that deliver an unmatched combination of mechanical strength, high thermal stability, and extraordinary resistance to chemical degradation. These attributes make them the go-to choice for challenging environments where reliability is non-negotiable. Industries such as power generation, desalination, and waste treatment reap significant advantages from these membranes, which guarantee consistent, high-efficiency filtration. By opting for SiC membranes, businesses can drastically increase throughput and minimize operational disruptions, resulting in a sustainable investment for the future.

Furthermore, Silicon Carbide membrane can be expertly customized with a range of composite materials, ensuring they meet specific operational needs—whether for large industrial systems or specialized applications. This level of customization not only maximizes filtration performance but also extends service life and reduces maintenance costs, providing essential confidence to those who depend on these systems.

Semicorex is unwavering in our commitment to quality in every Silicon Carbide membrane we manufacture. Our products meet the highest standards our customers expect, showcasing our relentless dedication to innovation and reliability. When you choose Semicorex SiC membranes, you’re making a decisive investment in a partnership designed to enhance your filtration processes while ensuring long-term durability and efficiency.

In conclusion, Silicon Carbide membrane is crucial for advanced filtration systems. They deliver exceptional performance while enduring harsh operating conditions. Their versatility is evident across industries, including water treatment and pharmaceuticals. With easy cleaning, reduced fouling, and superior performance, Semicorex SiC membranes empower your business to thrive and lead in innovation—while prioritizing environmental stewardship.
