SiC Pedestal

Semicorex SiC Pedestal is a high-precision, multi-functional hardware component designed to provide the thermal stability and intricate fluid distribution required for advanced microchannel reaction systems. Semicorex specializes in the engineering and supply of these high-purity SiC pedestals according to customers’ needs.*

Send Inquiry

Product Description

In the era of Flow Chemistry and Process Intensification, the hardware governing heat transfer and chemical resistance determines the limits of production efficiency. Semicorex SiC Pedestal is a precision-engineered core component designed specifically for the rigorous environments of Microchannel Reactors (MCR). Combining the extreme chemical inertness of SSiC (Pressureless Sintered Silicon Carbide) with advanced micro-machining, this pedestal serves as the foundation for safe, continuous, and highly exothermic chemical synthesis.

The Role of the SiC Pedestal

A Microchannel Reactor's performance relies on its ability to manage rapid kinetics within sub-millimeter channels. The SiC Pedestal acts as the structural and functional "heart" of the reactor stack:

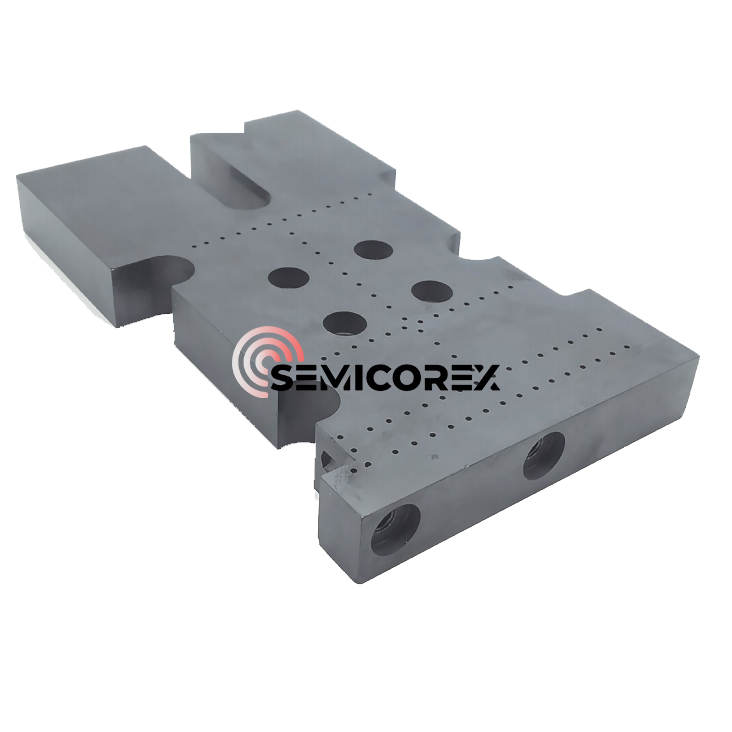

Fluid Distribution & Mixing: The intricate array of micro-apertures visible on the surface functions as a distribution network. These ports ensure the uniform injection of reactants into the microchannels, facilitating instantaneous mixing and preventing local concentration gradients.

Thermal Gradient Management: Given SiC’s exceptional thermal conductivity (typically 120W/(m·K)), this pedestal acts as a high-efficiency heat sink or pre-heater. It effectively eliminates "hot spots" in high-energy reactions, such as nitration or peroxidation, which are often too dangerous for traditional batch reactors.

Structural Platform: The pedestal provides the necessary flatness and mechanical rigidity required for vacuum sealing or diffusion bonding with upper reaction plates, ensuring zero-leakage performance under high-pressure flow conditions.

Applications

Our SiC pedestals are utilized in the most challenging "Zone 0" chemical processes:

Exothermic Liquid-Liquid Reactions: Nitration, Sulfonation, and Halogenation.

Hazardous Chemistry: Diazotization and reactions involving ozone or peroxides.

Nanomaterial Synthesis: Precision control over residence time and temperature to achieve uniform particle size distribution.

Pharmaceutical Intermediates: Ensuring metal-free synthesis environments for sensitive molecular structures.
