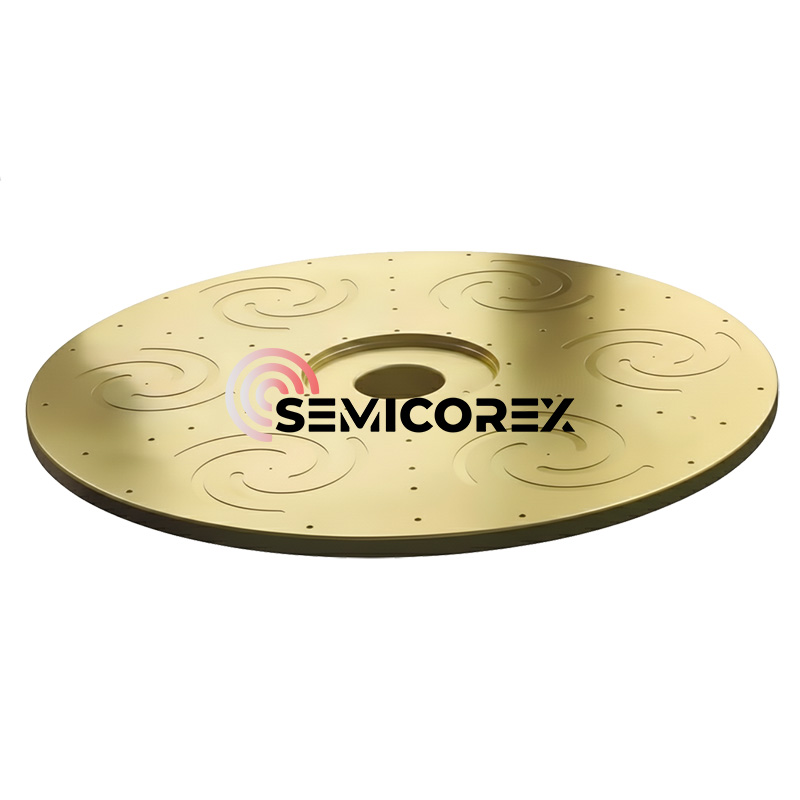

CVD TaC Coated Susceptors

Semicorex CVD TaC coated susceptors are designed specifically for SiC epitaxy (SiC Epi) applications. They provide excellent durability, thermal uniformity, and long-term reliability for these demanding process requirements. SiC epitaxy process stability and contamination control directly impact wafer yield and device performance, and therefore the susceptibility is a critical component in that regard. A susceptor must endure extreme temperatures, corrosive precursor gases, and repeated thermal cycling without distortion or coating failure since it is the primary means of supporting and heating the wafer within the Epitaxy reactor.

High-Purity TaC Coating for Extreme Environments

Tantalum carbide (TaC) is an established ultra-high temperature ceramic material with outstanding resistance to chemical corrosion and thermal degradation. Semicorex applies a uniform and dense CVD TaC coating to high-strength graphite substrates, providing a protective barrier that minimizes particle generation and prevents direct exposure of the graphite to reactive process gases (for example, hydrogen, silane, propane, and chlorinated chemistries).

The CVD TaC coating provides superior stability than conventional coatings under the extreme conditions that exist during SiC epitaxial deposition (greater than 1600 degrees Celsius). Additionally, the coating's excellent adhesion and uniform thickness promote consistent performance throughout long production runs and result in reduced downtime due to early failures in parts.

Optimized Design for Thermal Uniformity and Wafer Quality

Consistent epitaxy thickness and doping levels can be achieved through uniform temperature distribution on the wafer surface. To accomplish this, semicorex TaC coated susceptibility's are precision machined to exacting tolerances. This allows for outstanding flatness and dimensional stability during rapid temperature cycling.

The susceptor's geometric configuration has been optimized, including gas flow channels, pocket designs, and surface features. This promotes stable positioning of the wafer on the susceptor during epitaxy and improved evenness of heating, thereby increasing epitaxy thickness uniformity and consistency, resulting in a higher yield of devices manufactured for power semiconductor manufacturing.

Reduced Contamination and Longer Service Life

Surface defects caused by contamination from particles or out gassing can negatively impact reliability of devices manufactured using SiC epitaxy. The dense CVD TaC layer serves as a best-in-class barrier to diffusion of carbon from the graphite core, thereby minimizing surface damage over time. Additionally, its chemically stable smooth surface limits the build-up of undesirable deposits, making it easier to maintain suitable cleaning processes and more stable reactor conditions.

Due to its extreme hardness and ability to resist wear, TaC coating can greatly increase the life span of the susceptor compared to traditional coating solutions, thereby reducing the overall cost of ownership associated with producing large quantities of epitaxial material.

Quality Control and Manufacturing Expertise

Semicorex focuses on advanced ceramic coating technology and precision machining for semiconductor process components. Each CVD TaC coated susceptor is produced under strict process control, with inspections covering coating integrity, thickness consistency, surface finish, and dimensional accuracy. Our engineering team supports customers with design optimization, coating performance evaluation, and customization for specific reactor platforms.

Key Benefits

• High-purity CVD TaC coating for superior chemical and thermal resistance
• Improved thermal uniformity for stable SiC epitaxial growth
• Reduced particle generation and contamination risk
• Excellent adhesion and coating density for extended service life
• Precision machining for reliable wafer positioning and repeatable results
• Custom designs available for different SiC epitaxy reactor configurations

Applications

Semicorex CVD TaC Coated Susceptors are widely used in SiC epitaxial reactors for the production of power semiconductor wafers, supporting MOSFET, diode, and next-generation wide bandgap device manufacturing.

Semicorex delivers reliable semiconductor-grade susceptors by combining advanced CVD coating expertise, strict quality assurance, and responsive technical support—helping global customers achieve cleaner processes, longer part lifetime, and higher SiC epi yield.
