SiC Seal Face for DGS

In the high-stakes environment of centrifugal compressors and rotating turbomachinery, the SiC Seal Face for DGS is the most critical point of failure. Dry Gas Seals (DGS) have revolutionized industrial sealing by offering a low-leakage, oil-free solution. At the heart of these systems are Silicon Carbide (SiC) Seal Faces. Engineered for extreme environments, our SiC rings provide the mechanical integrity and thermal stability required to keep mission-critical operations running without interruption.

1. The Science of Dry Gas Seal (DGS) Principles

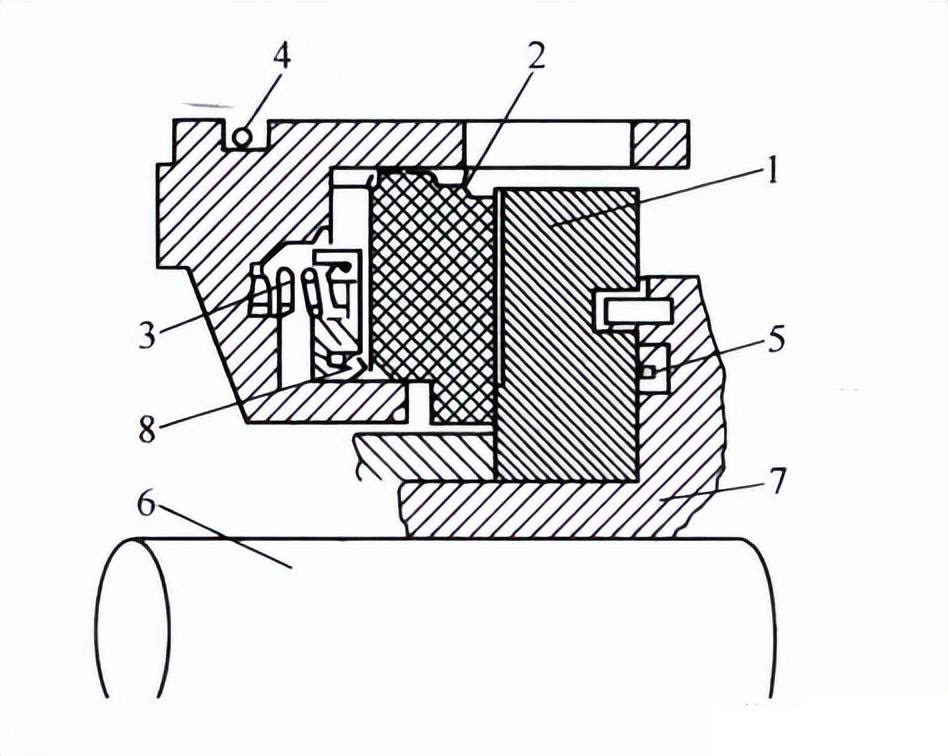

A SiC Seal Face for DGS is a non-contacting, end-face mechanical seal that relies on a thin film of gas to separate the sealing surfaces. This technology eliminates the need for complex oil lubrication systems, reducing both environmental impact and maintenance costs.

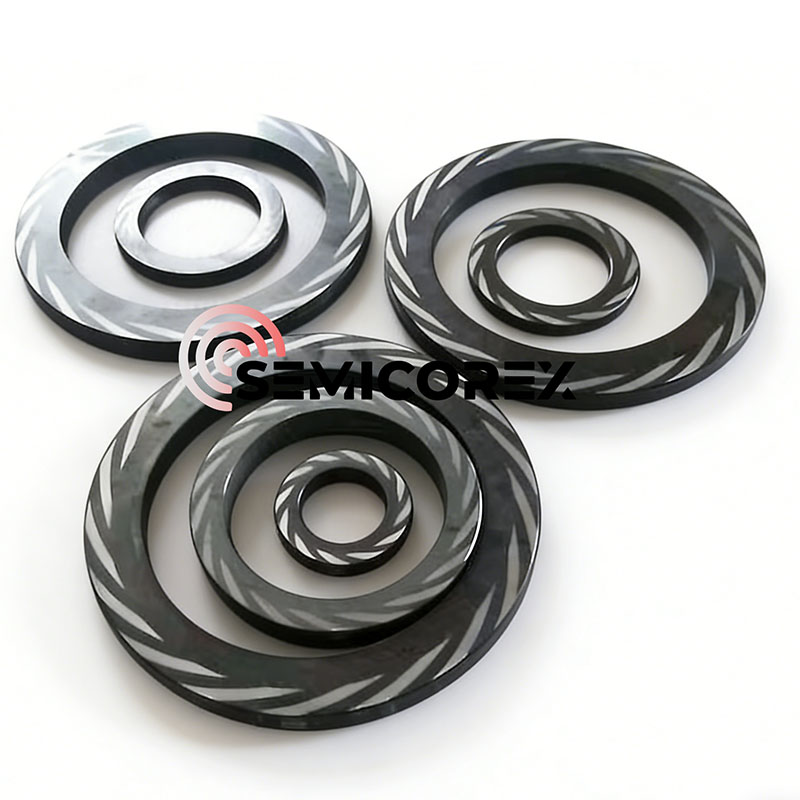

The operational magic happens through hydrodynamic lift. The rotating seal face (usually made of SiC) is precision-etched with microscopic hydrodynamic grooves—typically spiral, "T," or "U" shapes. As the shaft rotates at high velocities, these grooves draw the process or buffer gas inward, compressing it.

This compression creates a high-pressure "gas cushion" that exerts an opening force, maintaining a stable gap of approximately 3 to 5 microns between the stationary and rotating faces. Because there is no physical contact during operation, friction and wear are nearly zero. However, the material must be capable of surviving "touchdown" during startup and shutdown, as well as resisting the immense centrifugal forces of high-speed rotation.

2. Silicon Carbide (SiC) Parameters and Material Advantages

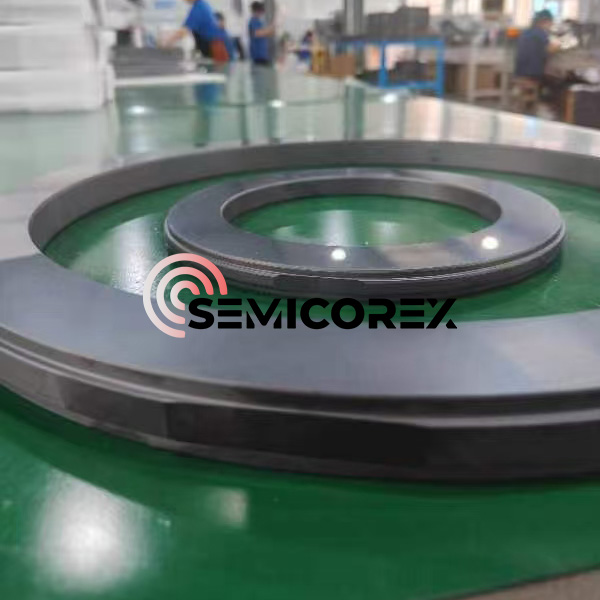

While various materials exist, Sintered Silicon Carbide (SSiC) is the industry benchmark for DGS applications due to its unique combination of hardness, thermal conductivity, and chemical inertness.

Our SiC Seal Face for DGS are manufactured to meet the most demanding API 617 and API 692 standard.

Key Material Advantages

Extreme Thermal Stability: SiC has a very low coefficient of thermal expansion. This ensures that the seal face remains perfectly flat even when exposed to the rapid temperature fluctuations common in transient compressor states.

Superior Corrosion Resistance: Our SSiC rings are chemically inert across the entire pH scale (0-14). They are immune to the effects of "sour gas" , carbon dioxide, and other aggressive hydrocarbons.

High PV Capability: The high "Pressure-Velocity" (PV) limit of SiC allows for operation at peripheral speeds exceeding 150 m/s and pressures over 100bar.

Precision Surface Finishing: We utilize advanced diamond-lapping technology to achieve a mirror finish (Ra < 0.05μm), providing the perfect canvas for laser-etched hydrodynamic grooves.

3. Mission-Critical Applications

Our SiC Seal Face for DGS are the trusted choice for global operators in the following sectors:

Oil & Gas (Upstream & Midstream): Essential for high-pressure natural gas pipeline compressors, offshore reinjection platforms, and LNG processing.

Petrochemical Refining: Used in ethylene, methanol, and ammonia synthesis where gas leakage can lead to catastrophic safety risks or environmental penalties.

Power Generation: Integrated into gas turbines and steam turbines to provide reliable sealing for buffer and cooling gases.

Hydrogen Economy: As the industry shifts toward green energy, our SiC rings are optimized for high-pressure hydrogen compression, where the small molecular size of requires the highest levels of face flatness and integrity.
