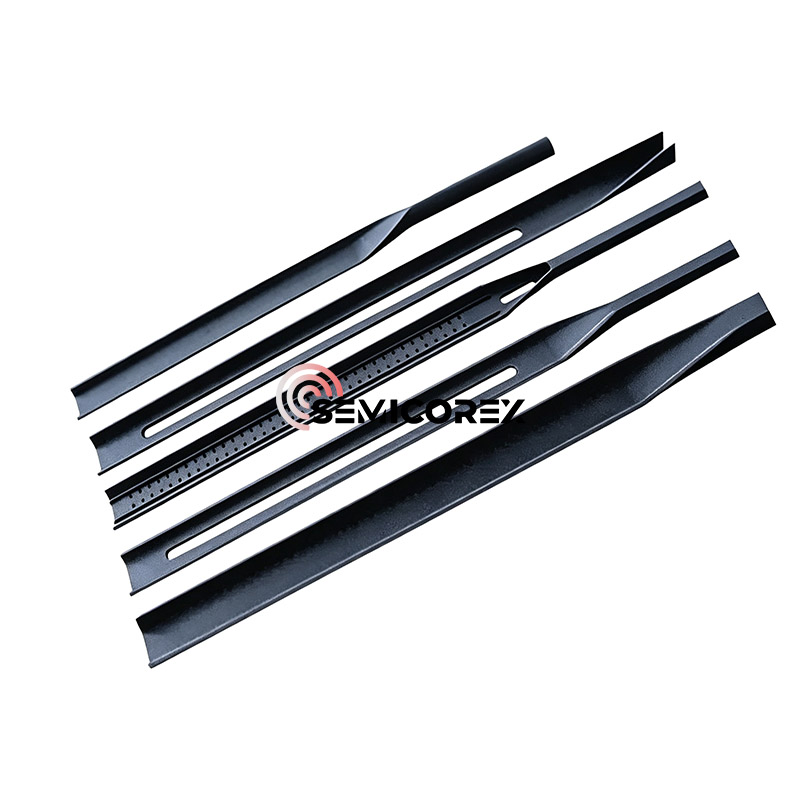

SiC Ceramic Paddles

As semiconductor manufacturing continues to demand tighter process control and higher production yields, wafer handling components must deliver exceptional dimensional stability, contamination resistance, and mechanical strength under elevated temperatures. SiC Ceramic Paddles are specially engineered cantilever wafer carriers designed to transport and support wafers throughout high-temperature furnace processes while maintaining outstanding structural integrity.

Manufactured from high-purity silicon carbide (SiC) ceramic, Semicorex SiC Ceramic Paddles are widely used in diffusion, oxidation, annealing, LPCVD, and other thermal processing equipment. Their lightweight yet rigid cantilever structure minimizes wafer vibration during loading and unloading, ensuring accurate positioning and safe transfer inside furnace systems.

Designed for long service life and consistent performance, these paddles help semiconductor manufacturers improve process stability, reduce contamination risks, and increase equipment productivity.

---

Purpose-Built for High-Temperature Furnace Operations

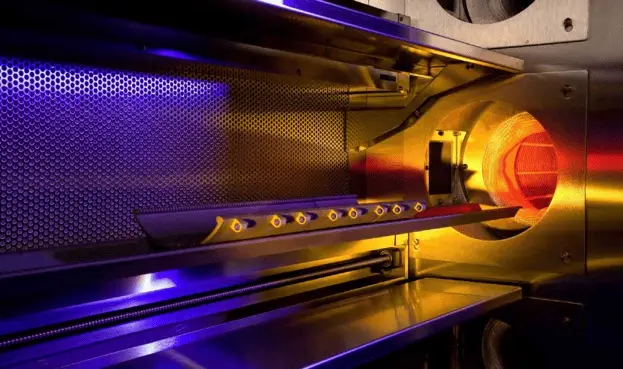

Unlike conventional wafer handling tools, SiC Ceramic Paddles are designed to operate directly inside furnace chambers where temperatures may exceed 1,000°C for extended periods.

Their cantilever configuration enables operators or automated handling systems to insert and remove wafer boats without disturbing the carefully controlled thermal environment. Throughout repeated heating and cooling cycles, the paddles maintain their mechanical strength and dimensional accuracy, allowing wafers to remain securely supported during transport.

Typical furnace applications include:

* Silicon wafer diffusion

* Thermal oxidation

* Annealing processes

* LPCVD processing

* Semiconductor heat treatment

* Research and pilot production lines

Their stable performance makes them indispensable in both semiconductor fabrication facilities and photovoltaic manufacturing.

---

High-Purity Silicon Carbide for Clean Processing

Material purity is essential for semiconductor production, where microscopic contaminants can significantly impact wafer yield.

Semicorex manufactures SiC Ceramic Paddles using high-purity silicon carbide ceramic that offers exceptional resistance to contamination and degradation during long-term furnace operation.

Material advantages include:

* High chemical purity

* Excellent oxidation resistance

* Outstanding corrosion resistance

* Extremely low particle generation

* High hardness and wear resistance

* Long operational lifetime

These characteristics help maintain clean furnace conditions while protecting sensitive wafers from contamination.

---

Superior Thermal Stability

Repeated exposure to extreme temperatures places tremendous stress on furnace components. Materials with poor thermal stability may deform, crack, or lose dimensional accuracy over time.

Silicon carbide offers outstanding thermal performance, including:

* Excellent high-temperature strength

* Low thermal expansion coefficient

* High thermal conductivity

* Outstanding thermal shock resistance

* Stable mechanical properties during thermal cycling

These advantages allow SiC Ceramic Paddles to remain dimensionally stable even during continuous production, supporting precise wafer positioning throughout the process.

---

Cantilever Design for Stable Wafer Transport

The defining feature of these components is their cantilever paddle structure. This design provides a long, rigid support arm capable of reaching deep into furnace chambers while maintaining excellent stiffness.

The cantilever configuration offers several operational benefits:

* Smooth wafer loading and unloading

* Reduced vibration during transport

* Improved positioning accuracy

* Lower risk of wafer edge damage

* Better compatibility with automated handling systems

The result is safer wafer movement and greater consistency across high-volume production lines.

---

Precision Manufacturing and Customization

Different furnace systems require paddles with unique lengths, widths, thicknesses, and structural features. Semicorex provides customized SiC Ceramic Paddles engineered to integrate seamlessly with various thermal processing platforms.

Customization options include:

* Custom paddle lengths

* Different cantilever geometries

* Precision slots or openings

* Lightweight structural designs

* Various thickness specifications

* Application-specific configurations

Advanced machining and precision finishing ensure excellent flatness, dimensional accuracy, and repeatable quality across every production batch.

---

Typical Applications

SiC Ceramic Paddles are commonly used in:

* Semiconductor diffusion furnaces

* Oxidation furnace systems

* Annealing equipment

* LPCVD reactors

* Silicon wafer processing lines

* Compound semiconductor manufacturing

* High-temperature laboratory furnaces

* Photovoltaic cell production

Their ability to combine high purity with excellent thermal stability makes them suitable for both production-scale manufacturing and advanced research applications.

---

What can Semicorex offer?

Semicorex combines premium silicon carbide materials with precision manufacturing expertise to produce furnace handling components that meet the stringent requirements of the semiconductor industry. Every SiC Ceramic Paddle is manufactured under strict quality control to ensure excellent mechanical reliability, dimensional consistency, and long-term durability in demanding thermal environments.

Whether replacing existing furnace components or developing new equipment platforms, Semicorex offers customized solutions tailored to customer specifications and process requirements.

---

Conclusion

Semicorex SiC Ceramic Paddles provide a dependable solution for wafer handling in high-temperature furnace applications. Manufactured from high-purity silicon carbide ceramic and engineered with a rigid cantilever design, they deliver exceptional thermal stability, contamination resistance, and mechanical strength. By ensuring secure wafer transport and maintaining dimensional precision under extreme processing conditions, these paddles contribute to higher production efficiency, improved process consistency, and extended equipment service life.
