SiC Ceramic Guide Rail

Semicorex SiC Ceramic Guide Rail is a precision linear motion component manufactured from high-density silicon carbide ceramic material. Combined with air flotation technology and precision feedback systems, the guide rail enables non-contact movement with virtually zero friction and minimal vibration.

Unlike conventional metal guide rails, SiC ceramic guide rails offer significantly improved thermal stability, rigidity, and flatness performance. During operation, compressed gas creates a dynamic and static pressure air film between the moving platform and the guide surface, allowing smooth and highly accurate linear motion without mechanical contact.

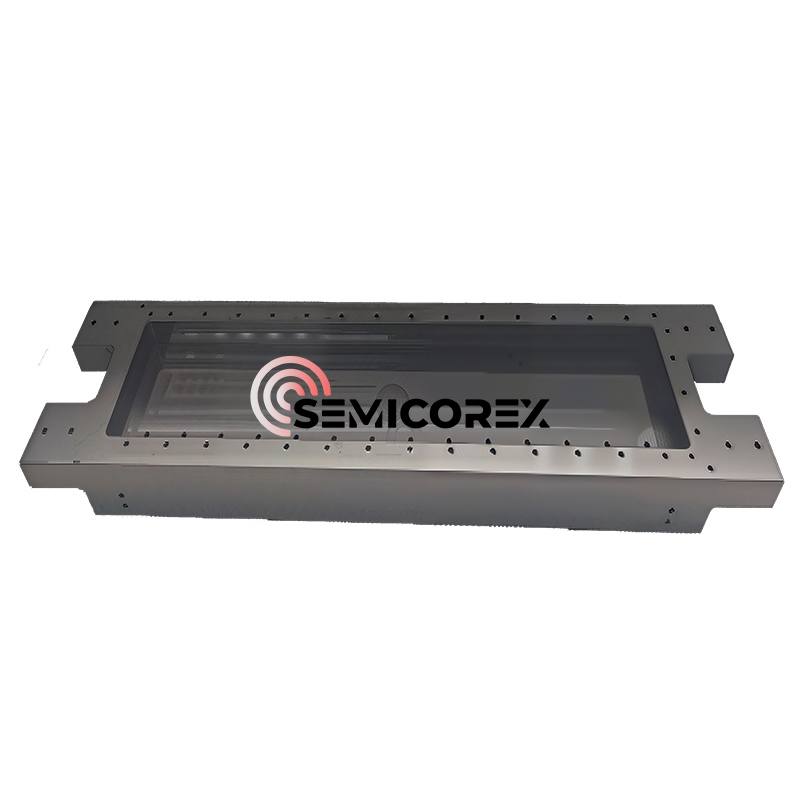

The product shown features a high-precision structural design suitable for advanced positioning platforms and air-bearing motion systems where nanometer-level accuracy and long-term stability are critical.

 Key Features of SiC Ceramic Guide Rails

Ultra-Lightweight Structure

Silicon carbide ceramics combine high strength with relatively low density, allowing the guide rail system to achieve lightweight construction while maintaining exceptional rigidity.

The lightweight design helps improve:

* Motion response speed

* Dynamic performance

* Acceleration capability

* Energy efficiency

This makes SiC ceramic guide rails highly suitable for high-speed precision automation systems.

Ultra-High Stability

One of the most important advantages of SiC ceramic guide rails is their outstanding structural stability. The material exhibits excellent resistance to deformation under thermal and mechanical loads.

In ultra-precision manufacturing environments, even microscopic dimensional changes can affect positioning accuracy. SiC ceramics help maintain stable geometric performance over extended operating periods.

Extremely Low Thermal Expansion Coefficient

Silicon carbide has a very low coefficient of thermal expansion compared with metals such as steel or aluminum. This allows the guide rail to maintain dimensional consistency even when exposed to temperature fluctuations.

Low thermal expansion is especially important in:

* Semiconductor lithography equipment

* Precision optical systems

* Wafer inspection platforms

* Coordinate measuring systems

* Laser processing equipment

Thermal stability directly contributes to improved positioning precision and process repeatability.

 High Rigidity and Mechanical Strength

SiC ceramic guide rails possess extremely high stiffness and mechanical strength. The rigid structure minimizes bending, vibration, and deformation during operation.

High rigidity helps ensure:

* Accurate linear motion

* Stable load support

* Reduced vibration

* Improved dynamic precision

This characteristic is essential for high-end motion systems requiring sub-micron or nanometer-level positioning accuracy.

High Density and Excellent Surface Quality

The dense SiC ceramic structure provides excellent wear resistance, corrosion resistance, and dimensional integrity. Precision processing technology allows the guide rail surface to achieve extremely high flatness and parallelism.

The flatness and parallelism can reach up to 1 micron, meeting the strict requirements of ultra-precision industrial applications.

The high-quality surface finish also improves air film stability in air-bearing systems, contributing to smoother motion and enhanced positioning performance.

Advantages of Air Bearing Technology

SiC ceramic guide rails typically utilize air flotation technology to achieve non-contact motion. By forming a thin pressurized air layer between surfaces, the system eliminates direct mechanical friction.

Compared with traditional rolling guide systems, air-bearing guide rails provide several important advantages:

* Friction-free movement

* Near-zero vibration

* Reduced particle generation

* No mechanical wear

* Ultra-smooth motion

* Lower maintenance requirements

* Longer operational lifespan

These benefits are especially valuable in semiconductor cleanroom environments and precision manufacturing facilities.

Applications of SiC Ceramic Guide Rails

SiC ceramic guide rails are widely used in industries requiring ultra-high motion precision and stability, including:

* Semiconductor wafer manufacturing

* Lithography systems

* Wafer inspection equipment

* Precision optical instruments

* Flat panel display production

* Laser machining systems

* Coordinate measuring machines

* Precision automation platforms

* Aerospace precision equipment

They are particularly suitable for advanced semiconductor processes where high-speed positioning, vibration suppression, and thermal stability are critical.
