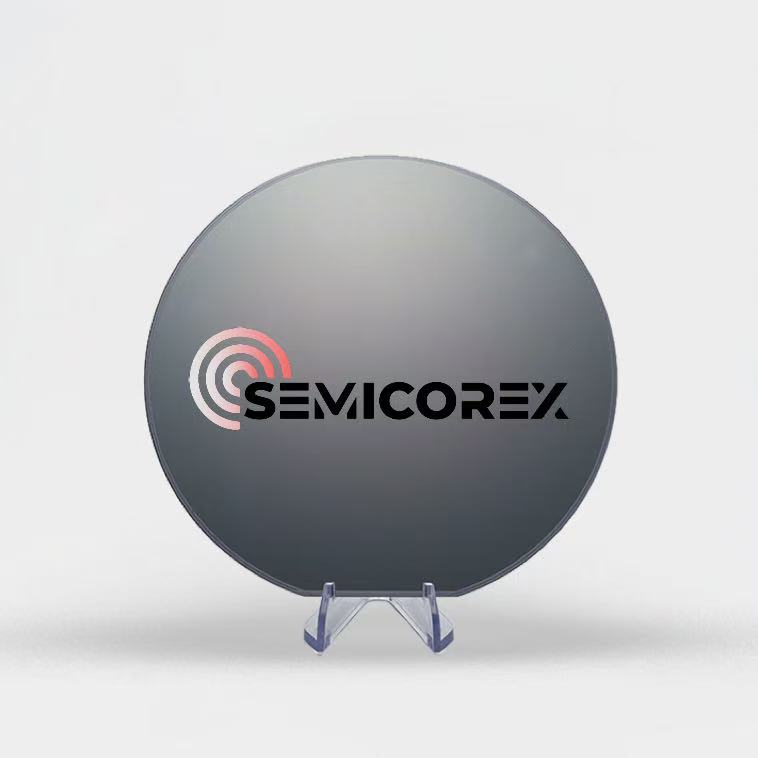

China silicon carbide on insulator Manufacturers, Suppliers, Factory

SiC substrate can have microscopic defects, such as Threading Screw Dislocation (TSD), Threading Edge Dislocation (TED), Base Plane Dislocation (BPD), and others. These defects are caused by deviations in the arrangement of atoms at the atomic level. SiC crystals may also have macroscopic dislocations, like Si or C inclusions, micropipe, hexagonal voids, polymorphs, etc. These dislocations are typically large in size.

In November 2023, Semicorex released 850V GaN-on-Si epitaxial products for high-voltage, high-current HEMT power device applications. Compared to other substrates for HMET power devices, GaN-on-Si enables larger wafer sizes and more diversified applications, and it can also be quickly introduced into the mainstream silicon chip process in fabs, which is a unique advantage for improving the yield of power devices.

Currently, many semiconductor devices employ mesa device structures, which are predominantly created through two types of etching: wet etching and dry etching. While the simple and rapid wet etching plays a significant role in semiconductor device fabrication, it has inherent drawbacks such as isotropic etching and poor uniformity, which result in limited control when transferring small-sized patterns. Dry etching, however, with its high anisotropy, good uniformity, and repeatability, has become prominent in semiconductor device fabrication processes. The term “dry etching” broadly refers to any non-wet etching technology used for removing surface materials and transferring micro and nano patterns, including laser etching, plasma etching, and chemical vapor etching. The dry etching discussed in this text specifically pertains to the narrow application of processes using plasma discharge—either physical or chemical—to modify material surfaces.

Chemical Vapor Deposition (CVD) is a versatile thin-film deposition technique widely employed in the semiconductor industry for fabricating high-quality, conformal thin films on various substrates. This process involves chemical reactions of gaseous precursors onto a heated substrate surface, resulting in the formation of a solid thin film. This article delves into the intricacies of CVD, exploring its mechanisms, advantages, limitations, and key applications in semiconductor manufacturing.

The push for higher power density and efficiency has become a primary driver of innovation across multiple industries, including data centers, renewable energy, consumer electronics, electric vehicles, and autonomous driving technologies. In the realm of wide bandgap (WBG) materials, Gallium Nitride (GaN) and Silicon Carbide (SiC) are currently the two core platforms, viewed as pivotal tools leading power semiconductor innovation. These materials are profoundly transforming the power electronics industry to address the ever-increasing demand for power.

Silicon carbide (SiC), as an important high-end ceramic material, has excellent properties such as high-temperature resistance, corrosion resistance, wear resistance, high-temperature mechanical strength, and oxidation resistance. These properties make it highly promising for applications in high-tech fields such as semiconductors, nuclear energy, defense, and space technology.
