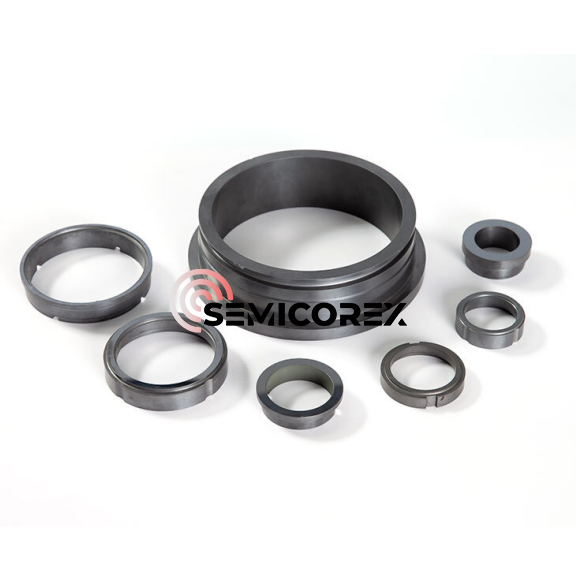

China sic ring Manufacturers, Suppliers, Factory

Epitaxial wafer process is a critical technique used in semiconductor manufacturing. It involves the growth of a thin layer of crystal material on top of a substrate, which has the same crystal structure and orientation as the substrate. This process creates a high-quality interface between the two materials, allowing for the development of advanced electronic devices.

Tantalum carbide coating is an important high-strength, corrosion-resistant and chemically stable high-temperature structural material with a melting point of up to 4273 °C, one of the several compounds with the highest temperature resistance. It has excellent high-temperature mechanical properties, resistance to high-speed airflow scouring, ablation resistance, and good chemical and mechanical compatibility with graphite and carbon/carbon composites. Therefore, in the epitaxial process of GaN LEDs and SiC power devices such as MOCVD, TaC coating has excellent acid and alkali resistance to H2, HCl, NH3, which can completely protect the graphite substrate material and purify the growth environment.

Quartz (SiO₂) material is very similar to glass at first glance, but the special thing is that the general glass is made up of many components (such as quartz sand, borax, boric acid, barite, barium carbonate, limestone, feldspar, soda ash, etc.), while the quartz contains only SiO₂ components, and the microstructure of its silicon dioxide tetrahedral structural units composed of a simple network.

Currently, many semiconductor devices employ mesa device structures, which are predominantly created through two types of etching: wet etching and dry etching. While the simple and rapid wet etching plays a significant role in semiconductor device fabrication, it has inherent drawbacks such as isotropic etching and poor uniformity, which result in limited control when transferring small-sized patterns. Dry etching, however, with its high anisotropy, good uniformity, and repeatability, has become prominent in semiconductor device fabrication processes. The term “dry etching” broadly refers to any non-wet etching technology used for removing surface materials and transferring micro and nano patterns, including laser etching, plasma etching, and chemical vapor etching. The dry etching discussed in this text specifically pertains to the narrow application of processes using plasma discharge—either physical or chemical—to modify material surfaces.

Silicon is the second most abundant element on Earth after oxygen. Most silicon is found in soil, rocks, natural water, trees, and plants.

The basic crystal unit cell of monocrystalline silicon is the zinc blende structure, in which each silicon atom bonds chemically with four neighboring silicon atoms. This structure is also found in monocrystalline carbon diamonds.
