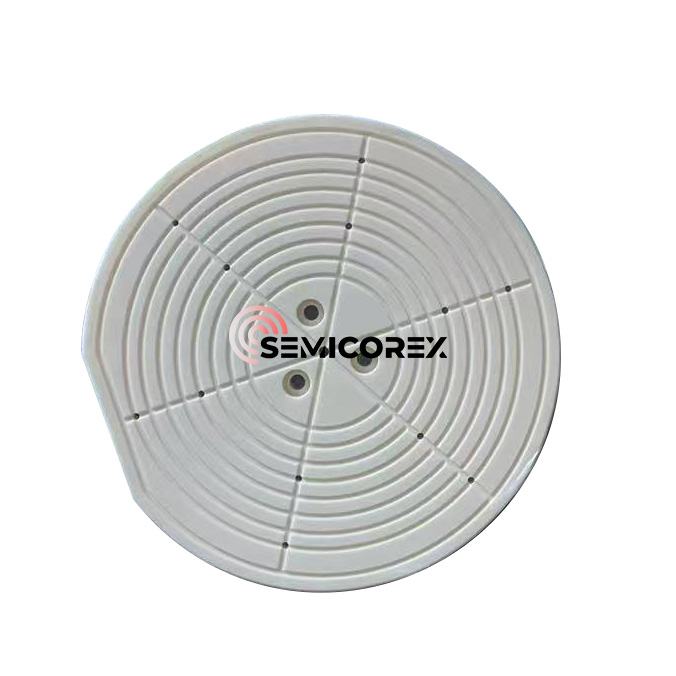

Wafer Edge Grinding Chuck

Semicorex Wafer Edge Grinding Chuck is a dedicated ceramic part made for the wafer edge grinding process during semiconductor manufacturing. The ceramic is made of high purity, white alumina (Al₂O₃) with mechanical strength, chemical resistance, and dimensional stability to support the wafer grinding process. As new technologies require larger wafer diameters and more delicate structures in the devices, wafer edge grinding now plays a significant role in the prevention of edge chipping, micro-cracking, and yield. The alumina ceramic grinding chuck provides a steady baseline on which to meet these strict manufacturing requirements.

Alumina ceramic is used as the material of construction because of its incredible physical, chemical, and thermal properties. White alumina has outstanding hardness with only the diamond, that ranks higher on the Mohs hardness scale, which enable the grinding chuck to withstand wear and abrasion into the foreseeable future with repetitive use. Given the considerable mechanical strength of alumina, the wafer can be securely grasped and held, while the rigidity of the alumina does not allow distortion, or deformation when there is load applied to the part. Given this, alumina is an excellent choice in order to produce fixtures and supports where precision and durability are required.

Thermal stability is also a distinctive trait of alumina ceramic. With a melting point greater than 2000 °C and thermal shock stability, the chuck can run in conditions where frictional heating or temperature change can happen, it is consistent w.r.t where dimensional stability is critical although grinding edge shape may impart a little bit of change in dimension. The clamping force remains strong for consistently maintaining alignment in edge grinding. The low thermal conductivity of alumina should not allow localized heating to heat the wafer up enough for any compromise of the wafer's integrity in processing of delicate substrates semiconductors.

From a chemical perspective, alumina ceramics has little reaction to acids, alkalis, and the plasma environments of semiconductor processing. Unlike metallic chucks that may corrode or polymeric fixtures that may continue to degrade without explicit monitoring, alumina ceramics is immune to these every day service cycles in semiconductor processing. This inertness will ensure zero contamination of the wafer surface and will maintain the purity of the process while limiting any yield loss.

In today's semiconductor manufacturing landscape, the process of edge grinding is multi-faceted: it prepares the wafer for subsequent processing and also affords safe transport, handling, and integration to the most advanced lithography and etching tools. In this, the Wafer Edge Grinding Chuck is an important piece of the puzzle of attaching the wafer safely, holding accurately, and it directly contributes to wafer reliability and product performance. With the investment in alumina ceramic, time is saved by having the extended longevity of such an asset to limit downtime, reduce parts costs, and maximize equipment effectiveness (OEE).

The Wafer Edge Grinding Chuck made from alumina ceramic represents all the advantages of sophisticated material science and precision engineering. It exemplifies the qualities of hardness, wear resistance, thermal stability, and chemical inertness necessary for the semiconductor wafer fabrication process. Robust performance can lead to reliable wafer edge quality, good yield, and extended equipment life. For semiconductor manufacturers committed to impeccable precision and efficiency, the alumina Wafer Edge Grinding Chuck is the solution.
