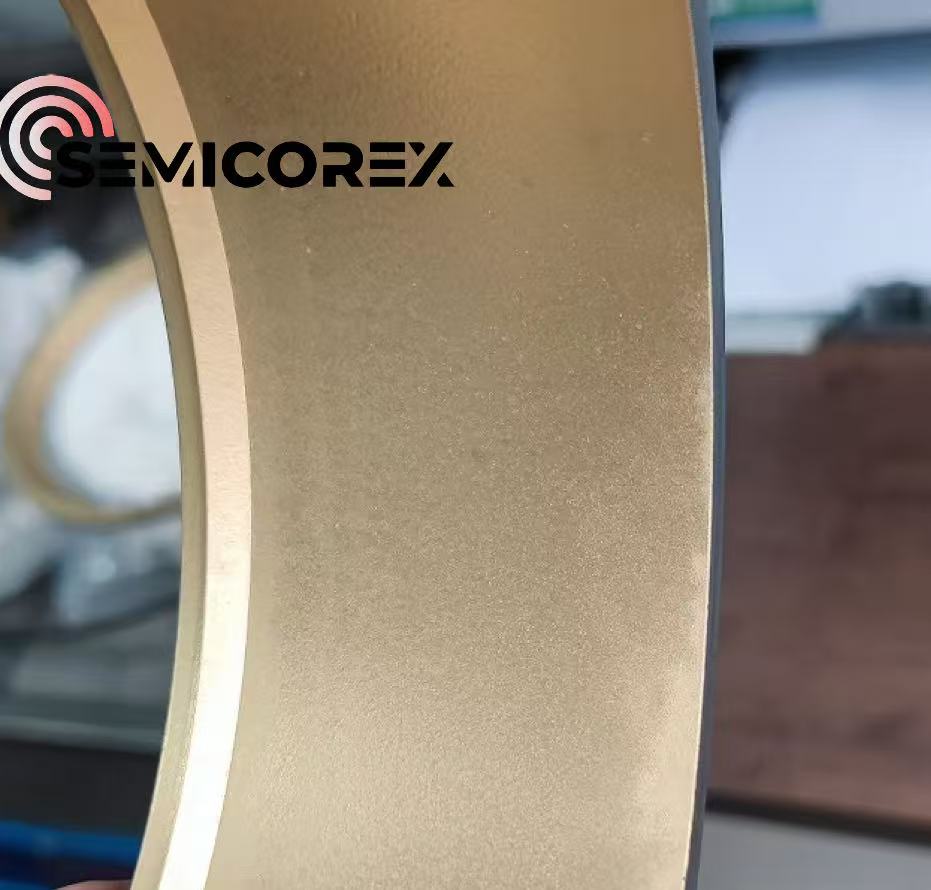

Tantalum Carbide Coated Guide Rings

Guide rings are typically installed above the graphite crucible within the thermal field system. They work in conjunction with the crucible, heater, and thermal insulation cylinder, and other semiconductor components to guide and control the distribution of heat and process gases.

The Advantages of Tantalum Carbide Coating

Renowned for the superior performance of TaC coating in third-generation semiconductor single-crystal growth applications, tantalum carbide coating offers the following advantages:

1. Exceptional thermal stability

Tantalum carbide features superb thermal resistance, with an ultra-high melting point of 3880℃. Featuring this exceptional thermal stability, Semicorex tantalum carbide coated guide rings can be used stably in high-temperature environments below 2500℃. In addition, the combination of these two materials minimizes the risks of coating cracking and peeling caused by temperature changes, which significantly enables the structural integrity of the component during repeated heating and cooling processes.

2.Remarkable corrosion resistance

Tantalum carbide has remarkable corrosion resistance and oxidation resistance, and is chemically inert to most reactive gases such as ammonia, hydrogen, and silicon. Due to this chemical stability, Semicorex tantalum carbide coated guide rings effectively prevent reactive gases from eroding the matrix and damaging their structural integrity, while also avoiding the risk of contamination from reactants and impurities entering the crystal structure.

The Performance of Semicorex Tantalum Carbide Coated Guide Rings

Semicorex tantalum carbide coated guide rings use high-purity graphite as the matrix and deposit the TaC coating on the surface via CVD technology. The combination of these two materials enables Semicorex tantalum carbide coated guide rings deliver the following advantages:

1.Gas flow guidance and flow field optimization

During crystal growth, the use of guide rings helps optimize flow distribution within the thermal field and directs reactive gases toward a controllable flow direction and uniform distribution. Thanks to their special structural design, Semicorex tantalum carbide coated guide rings can can guide gas to flow and distribute uniformly, which effectively avoids excessively high or low local gas concentrations.

2.Temperature Regulation and Thermal Field Optimization

Semicorex tantalum carbide coated guide rings exhibit superior thermal conductivity, playing a crucial role in helping regulate the temperature distribution and provide a stable temperature field for crystal growth. For example, Semicorex tantalum carbide-coated guide rings can help maintain the temperature gradient in the PVT growth of silicon carbide crystals, ensuring that the materials decompose, transport, and crystallize under suitable conditions.
