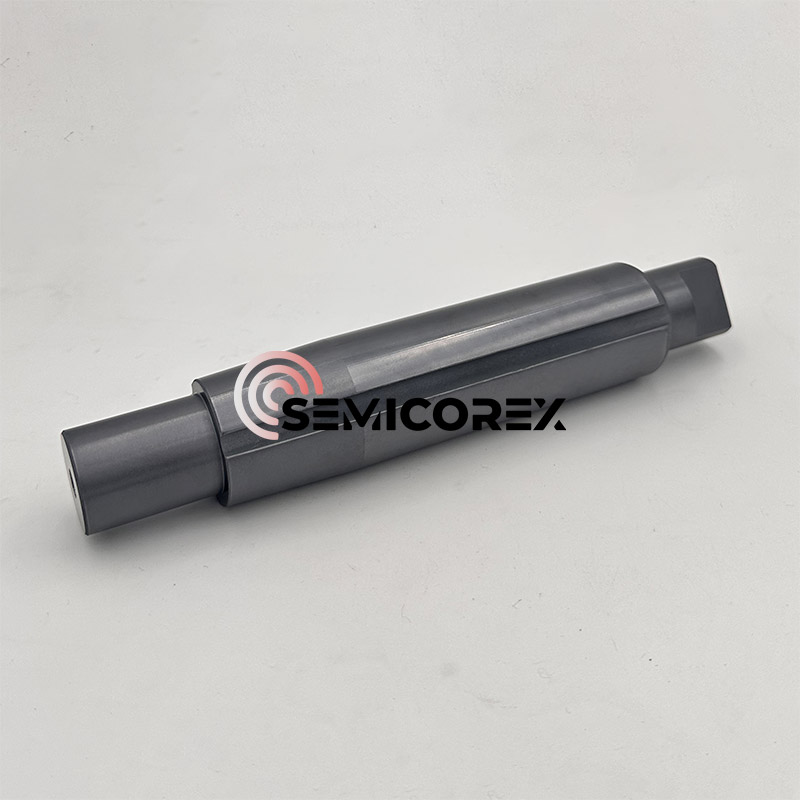

Silicon Carbide Pump Shaft

Semicorex Silicon Carbide Pump Shaft is a precisely manufactured ceramic part created to be utilized in Magnetic Drive Pump systems that require reliability, chemical resistance, and long-lasting dimensional stability. The shaft of a Magnetic Drive Pump system serves as a structural support for the rotating assembly and operates without the traditional mechanical connection between the rotor and the stator. In addition, it must operate under harsh environmental conditions such as corrosive chemicals, high heat, and/or purity requirements. Due to its unmatched mechanical strength, superior abrasion resistance, and chemically inert characteristics, Silicon Carbide ceramic has become the material of choice for Pump Shafts under these extreme conditions compared to traditional metal or plastic Pump Shafts.

Silicon Carbide is well known as the hardest material on earth and has excellent resistance to wear. These properties make it an excellent choice for continual use in Fluid Handling Systems. In addition, in Magnetic Drive Pumps, the Shaft is typically in contact with the Bushings or Bearings and also in contact with the Process Fluid, which causes the Surface of the Shaft to wear out, resulting in misalignment, vibration, and decreased efficiency. The Surface of the Silicon Carbide Shaft remains smooth and stable during extended periods of Service Life, which significantly decreases the amount of friction and wear on mated components. This results in consistent Performance of the Pump, decreased energy consumption, and increased Service Life of the entire Pump Assembly.

A silicon carbide pump shaft is advantageous due to its high level of chemical resistance. When a magnetic drive pump is utilized to transfer aggressive/hazardous/high purity fluids (e.g., strong acids, strong alkalis, solvents, and/or corrosive chemicals), a pump shaft made from silicon carbide provides high reliability with respect to chemical compatibility and purity due to the fact that silicon carbide is chemically inert to most types of industrial media, so it does not corrode, swell, or degrade when exposed to them for a long period of time. The elimination of issues related to corrosion provides for a reduced risk of leakage and a greater level of operational safety for applications in chemical processing, petrochemical production, pharmaceutical production, and semiconductor-related industries.

Another feature of silicon carbide ceramic shafts is their thermal stability. Typically, magnetic drive pumps operate within varying temperature ranges (e.g., elevated temperature and rapid thermal fluctuations). Silicon carbide offers excellent mechanical strength, dimensional stability and a low thermal expansion coefficient over wide ranges of temperature, significantly reducing the likelihood of distortion or cracking as a result of thermal cycling or varying temperatures. Additionally, silicon carbide conducts heat well, so it has the ability to dissipate friction-generated heat quickly, limitations of which could result in abnormal wear, thermal stress, or premature failures of bearings and surrounding components.

Using advanced ceramic grinding and polishing methods makes precision manufacturing of magnetic drive pump shafts feasible through the use of silicon carbide as a viable material for the production of pump shafts with high accuracy and precision, delivering high straightness, tight tolerances, and smooth surfaces to provide proper alignment within the pump assembly and to reduce friction on the pump assembly components.

Magnetic drive pump shafts can be customized to meet the individual requirements of a unique application with a variety of diameters, lengths, and end configurations, making it easy to adapt the shafts to fit the design of the pump and to provide the desired performance level.

Silicon carbide pump shafts, as a consequence of their mechanical and chemical properties, also possess superior cleanliness and lower particle generation relative to other types of materials. These properties are especially important for applications utilizing pure fluids, where even small amounts of contaminating particles can result in greater risks of contamination or loss of performance. Speaking to the cleaning and maintenance requirements of silicon carbide pump shafts, the dense, non-porous nature of the manufacturing process significantly reduces contamination risks and facilitates the cleaning and maintenance of these pump shafts.

In addition to their capabilities in providing a long service life with minimal material wear, the use of silicon carbide pump shafts is also advantageous, economically, over the full lifecycle of the pump.

The use of silicon carbide pump shafts has proven to be successful across numerous industries, including oil and gas, chemical processing, pharmaceutical, fine chemical manufacturing, and others, and continues to be a reliable high-performance solution for magnetic drive pumps. By choosing silicon carbide ceramic shafts, pump manufacturers and operators achieve improved reliability, enhanced safety, reduced maintenance costs, and stable performance in even the most demanding fluid-handling applications.
