SiC Coated Heaters

Precise temperature control is fundamental to semiconductor manufacturing. Whether in epitaxy, crystal growth, chemical vapor deposition (CVD), or thermal annealing, the performance of the heating system directly affects process uniformity, wafer quality, and equipment reliability. At the center of these thermal systems is the SiC Coated Heater—a critical component responsible for generating and maintaining stable high-temperature environments.

Semicorex SiC Coated Heaters are manufactured using high-purity isotropic graphite substrates protected by a dense Chemical Vapor Deposition (CVD) silicon carbide coating. Combining the excellent thermal conductivity of graphite with the outstanding corrosion resistance of CVD SiC, these heaters are designed to deliver long-term stability in harsh thermal field environments where temperatures can exceed 1,500°C.

---

A Core Component of the Thermal Field

In semiconductor equipment, the heater is much more than a heating element—it is an integral part of the thermal field structure. It converts electrical energy into heat while ensuring that thermal energy is distributed evenly throughout the process chamber.

The heater works together with insulation materials, susceptors, support structures, and gas distribution components to create a stable thermal environment. Consistent temperature distribution is essential for maintaining uniform crystal growth, epitaxial layer thickness, and wafer processing quality.

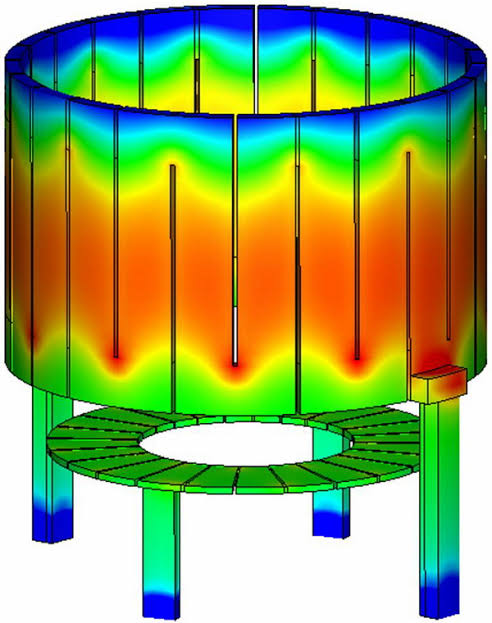

By minimizing temperature gradients and reducing localized hot spots, SiC Coated Heaters contribute to improved process repeatability and higher production yields.

---

CVD SiC Protection for Extended Service Life

Graphite is widely used as the structural material for semiconductor heaters because of its excellent thermal conductivity, low density, and ability to withstand extreme temperatures. However, unprotected graphite is susceptible to oxidation and chemical attack when exposed to reactive process gases.

To overcome these limitations, Semicorex applies a dense CVD silicon carbide coating to the graphite surface.

The CVD SiC layer provides several important advantages:

* Protects the graphite substrate from corrosion

* Minimizes particle generation

* Increases resistance to chemical erosion

* Extends component service life

* Maintains surface integrity during long production cycles

The dense coating acts as a protective barrier without significantly affecting thermal conductivity, allowing the heater to maintain excellent heating efficiency while operating in aggressive process environments.

---

High Thermal Efficiency and Uniform Heating

Temperature uniformity is one of the most important performance indicators for thermal processing equipment. Even small temperature variations can lead to inconsistent film deposition, crystal defects, or wafer warpage.

SiC Coated Heaters are engineered to deliver:

* Rapid heat transfer

* Uniform temperature distribution

* Stable thermal performance

* Excellent thermal shock resistance

* Reliable operation during repeated heating cycles

These characteristics help semiconductor manufacturers achieve tighter process control and greater consistency across multiple production batches.

---

## Engineered for Demanding Process Conditions

Semiconductor thermal fields operate under extreme conditions involving high temperatures, vacuum environments, and reactive process gases. Components must maintain their structural integrity despite continuous thermal cycling and prolonged exposure to harsh chemistries.

The combination of isotropic graphite and CVD silicon carbide offers:

* Excellent high-temperature stability

* Superior oxidation resistance

* Outstanding mechanical strength

* Low thermal expansion

* High thermal conductivity

* Exceptional resistance to thermal fatigue

These properties make SiC Coated Heaters suitable for continuous industrial operation in advanced semiconductor equipment.

---

Flexible Design for Complex Heater Geometries

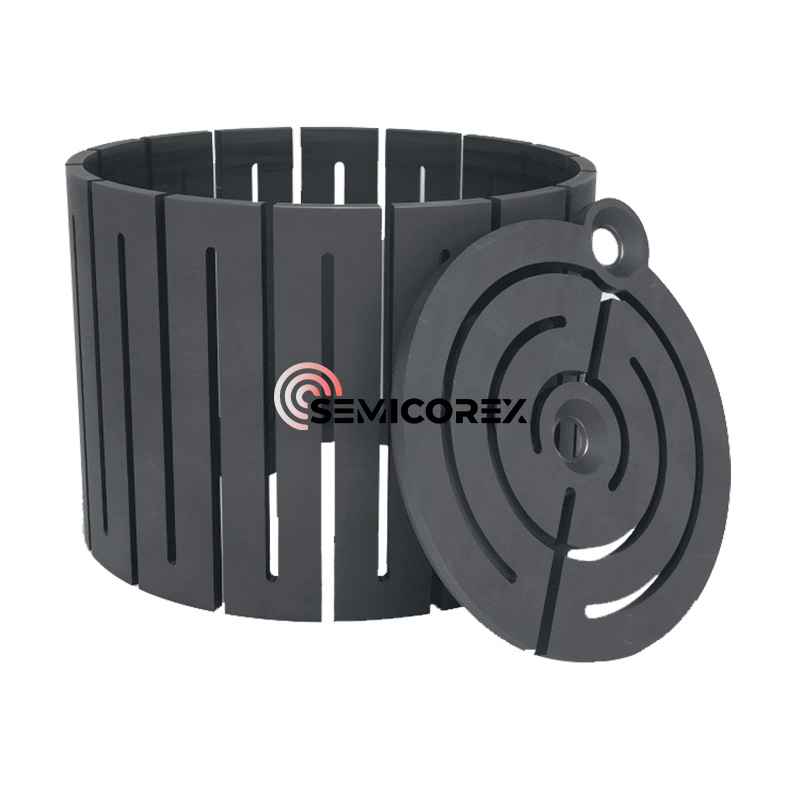

Thermal field configurations vary depending on equipment design and process requirements. As shown in the product image, SiC Coated Heaters can be manufactured in a variety of sophisticated structures, including segmented cylindrical heaters, circular heating plates, and customized assemblies with precision slots and openings.

Semicorex offers comprehensive customization services, including:

* Various heater diameters

* Segmented or monolithic structures

* Customized heating geometries

* Precision-machined features

* Different SiC coating thicknesses

* Equipment-specific mounting designs

Our engineering team works closely with customers to optimize heater configurations for specific thermal field architectures.

---

## Typical Applications

SiC Coated Heaters are widely used in:

* Silicon epitaxy reactors

* Silicon carbide epitaxy systems

* Crystal growth furnaces

* Semiconductor diffusion furnaces

* CVD processing equipment

* Annealing systems

* High-temperature vacuum furnaces

* Advanced thermal field assemblies

They are suitable for both semiconductor wafer production and compound semiconductor manufacturing requiring stable, high-temperature operation.

---

Semicorex Manufacturing Advantages

Semicorex combines advanced graphite machining with proprietary CVD silicon carbide coating technology to manufacture high-performance thermal field components for the semiconductor industry.

Every SiC Coated Heater undergoes strict quality control to ensure:

* Uniform SiC coating coverage

* Excellent coating adhesion

* High dimensional accuracy

* Stable thermal performance

* Long operational life

With extensive experience in semiconductor thermal field solutions, Semicorex provides reliable components that support higher equipment uptime and lower maintenance costs.

---

Semicorex SiC Coated Heaters are high-performance thermal field components engineered for demanding semiconductor processing applications. Featuring a high-purity graphite substrate protected by a dense CVD silicon carbide coating, they combine exceptional thermal conductivity, corrosion resistance, and mechanical stability to deliver reliable performance under extreme temperatures. Whether used in epitaxy, crystal growth, or high-temperature furnace systems, SiC Coated Heaters help improve temperature uniformity, extend component lifespan, and enhance overall process efficiency.
