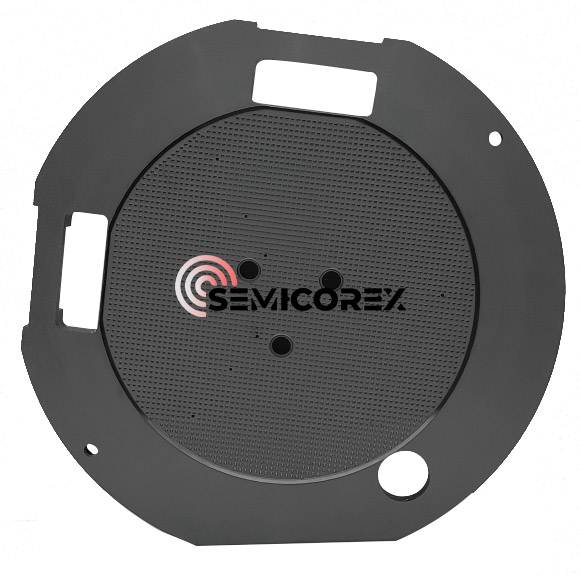

SiC Ceramic Vacuum Chuck

As they strive for Moore's Law, semiconductor fabrication facilities need wafer-holding platforms that can endure severe mechanical forces and remain flat, with no bumps or dips. Semicorex SiC Ceramic Vacuum Chuck provides the perfect solution to replace traditional alumina and stainless steel chucks; they'll provide the necessary stiffness to weight ratio and will not react chemically, both of which are essential for processing 300mm wafers and beyond.

1. Material advantages by using sintered dense silicon carbide (SSiC).

The core component of our SiC Ceramic Vacuum Chuck is Sintered Silicon Carbide, a material defined by its very strong covalent bonding. Our SSiC is not porous or reaction-bonded; rather, it is sintered at > 2000 degrees Celsius to achieve almost theoretical density (> 3.10 g/cm3) — simply put, it is more solid than other materials used to manufacture vacuum chucks.

Exceptional Mechanical Stiffness.

The Young's Modulus of SSiC is approximately 420 GPa, thus making it much stiffer than alumina (approximately 380 GPa). Because of this high modulus of elasticity, our chucks will remain stable under both vacuum and high speed rotation conditions and will not deform; hence, the wafers will not "potato chip" (i.e., warp) and will always make uniform contact across their entire surface area.

Thermal Stability and Low CTE

In processes involving high-intensity UV light or friction-induced heat, thermal expansion can lead to overlay errors. Our SiC chucks possess a low Coefficient of Thermal Expansion (CTE) of 4.0 x 10^{-6}/K, coupled with high thermal conductivity (>120W/m·K). This combination allows the chuck to dissipate heat rapidly, maintaining dimensional stability during long-duration lithography or metrology cycles.

2. Precision Engineering and Design

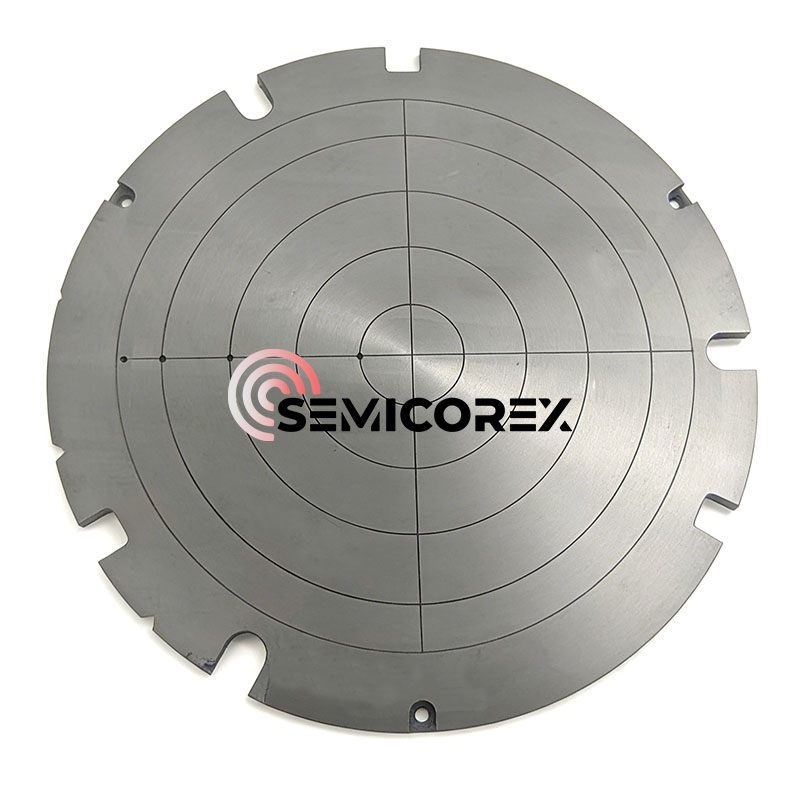

As visible in the product image, our vacuum chucks feature an intricate network of concentric and radial vacuum channels. These are CNC-machined with extreme precision to ensure uniform suction across the wafer, minimizing localized stress points that could lead to wafer breakage.

Sub-Micron Flatness: We utilize advanced diamond grinding and lapping techniques to achieve global flatness of <1μm. This is critical for maintaining the focal depth required in advanced lithography nodes.

Lightweighting (Optional): To accommodate high-acceleration stages in steppers and scanners, we offer internal honeycomb "lightweighting" structures that reduce mass without compromising structural rigidity.

Perimeter Alignment Notches: Integrated notches allow for seamless integration with robotic end-effectors and alignment sensors within the process tool.

3. Critical Applications in the Semiconductor Supply Chain

Our SiC Ceramic Vacuum Chucks are the industry standard for:

Wafer Thinning & Grinding (CMP): Providing the rigid support necessary to thin wafers down to the micron level without edge chipping.

Lithography (Steppers/Scanners): Acting as the ultra-flat "stage" that ensures precise laser focusing for sub-7nm nodes.

Metrology & AOI: Ensuring wafers are perfectly flat for high-resolution inspection and defect mapping.

Wafer Dicing: Providing stable suction during high-speed mechanical or laser dicing operations.

At Semicorex, we understand that a vacuum chuck is only as good as its surface integrity. Every chuck undergoes a multi-stage quality control process:

Laser Interferometry: To verify flatness across the entire diameter.

Helium Leak Testing: Ensuring the vacuum channels are perfectly sealed and efficient.

Cleanroom Cleaning: Processed in Class 100 environments to ensure zero metallic or organic contamination.

Our engineering team works closely with OEM tool manufacturers to customize slot patterns, dimensions, and mounting interfaces. By choosing Semicorex, you are investing in a component that reduces downtime, improves overlay accuracy, and lowers your total cost of ownership through extreme durability.
