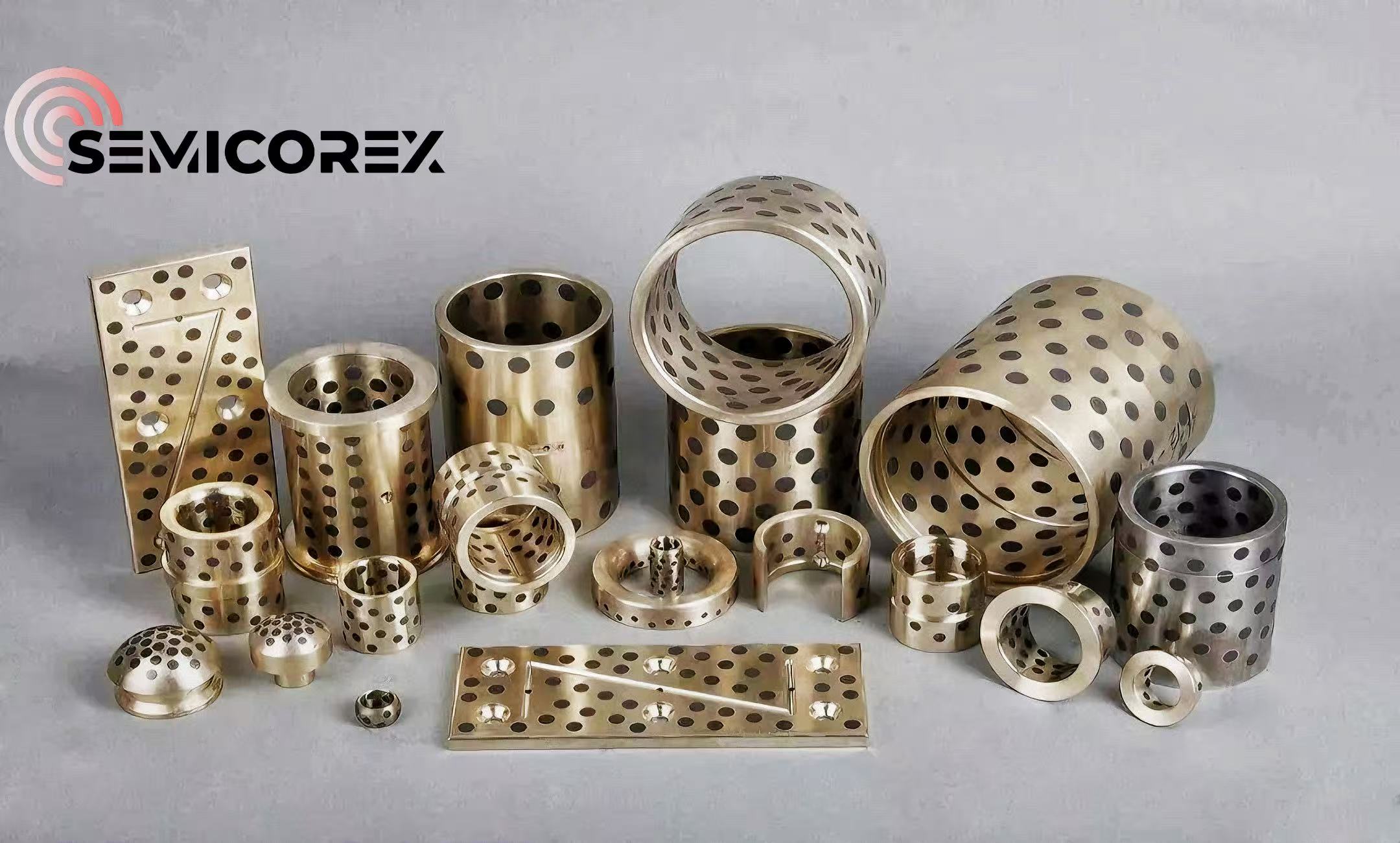

Self-lubricating Graphite Bushings

Semicorex’s self-lubricating graphite bushing is a self-lubricating part made by embedding specially formulated solid graphite lubricating plugs into the copper alloy matrix with orderly arranged and appropriately sized holes. In actual operating conditions, solid graphite lubricating plugs gradually transfer to the friction surfaces between the shaft and the copper bushing, forming a uniform lubricating film. This lubricating film can effectively avoid the direct contact between metal components, thereby reducing component damage caused by friction between the shaft and the copper bushing.

This combination of a metal matrix and a solid lubricant makes full use of the superior properties of copper alloys and graphite. The excellent mechanical strength and wear resistance of copper alloys endow self-lubricating graphite bushings with remarkable load-bearing capacity, enabling them to withstand heavy loads and impact forces. Solid graphite lubricating plugs deliver superb self-lubricating properties and chemical stability, allowing them to provide lubrication in harsh operating conditions where oil lubrication is ineffective.

Semicorex’s self-lubricating graphite bushings are the optimal lubricating solution, which particularly suitable for applications, such as the contamination-sensitive environments that forbid oil lubrication, enclosed conditions that oil lubrication is difficult, or immersed liquid scenarios that oil films fail to form.

Main applications of Semicorex’s self-lubricating graphite bushings

1. Construction Machinery: used in equipment such as excavators, loaders, and cranes.

2. Metallurgical Machinery: Bushings for casters, rolling machines, and sintering pallets.

3. Chemical Equipment: Bearings in reactors, pumps, compressors.

4. Marine Machinery: Bushings in marine engines, propellers, steering gears.

5. Wind Power Equipment: Support bushings for the yaw system and pitch system of wind turbines.

6. Injection Molding Machinery: Moving parts in injection molding machines.
