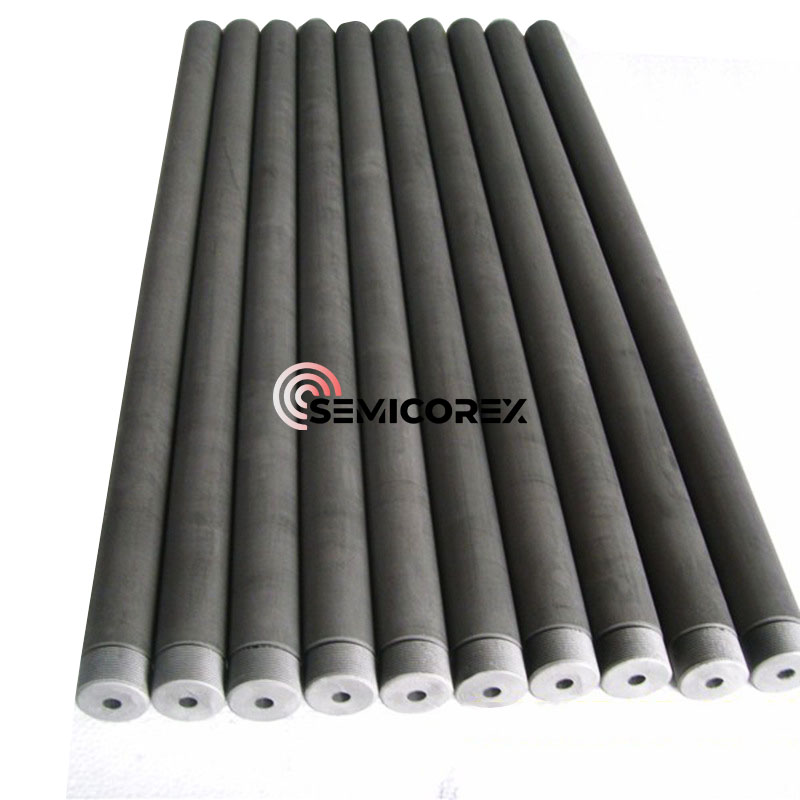

Graphite Rod Heater

Semicorex Graphite Rod Heaters are a highly effective thermal element for vacuum furnaces. Made with high-purity graphite, graphite rod heaters are an efficient heating element with excellent thermal conductivity, conformability at high temperature, and uniform heating. Graphite rod heaters are an essential part of a vacuum furnace because they provide the high-temperature consistent thermal environments needed for heat treatment, sintering, brazing, and various other high-temperature forms of processing.

Graphite is widely acknowledged for its outstanding thermal properties, making it an ideal material for heater construction in environments where traditional metal-based heaters fail due to oxidation or melting. The Graphite Rod Heater excels in applications where temperatures can reach up to 3000°C in inert or vacuum atmospheres. Its low thermal expansion coefficient and high thermal conductivity ensure a stable, even distribution of heat throughout the furnace chamber, minimizing thermal gradients and improving process uniformity.

Graphite rod Heater have amazing high temperature resistance, with a maximum operating temperature of up to 3000℃, which makes them an ideal material for high temperature environments, such as electric heating elements in high temperature furnaces. At such high temperatures, graphite rods can still maintain stable performance and will not melt or deform easily. Moreover, its thermal expansion coefficient is small, and when the temperature changes drastically, it will not crack due to thermal expansion and contraction, and has good thermal shock resistance. For example, in some high-temperature furnaces for metal smelting, graphite rods, as heating elements, frequently undergo high-temperature heating and cooling processes, but can still work stably and provide continuous heat for metal smelting.

Graphite rod heaters are one of the few heaters that operate in vacuum conditions with no adverse effects. In vacuum furnaces, oxidation must be avoided, and lower outgassing of graphite and chemical stability of graphite are advantages. The heater is still effective in high vacuum and controlled atmosphere conditions (argon, nitrogen). There is no limit on how long you can run the heater, that is an advantage. The heater does an efficient job of maintaining the high temperature environment with minimal loss, which helped with operational costs.

The heater's configuration is flexible which can aid in the discovery of new furnace geometries or needs; this could also take on different diameters and lengths depending on the dimensions of the heating zone or specific temperature profile. In addition, the modular design is advantageous for maintenance and replacement parts, reducing the downtime of critical production lines.

The rapid heating or cooling properties of graphite rod heaters is another key attribute. Graphite's high thermal response rate allows the rod heater to come up to temperature quickly, and likewise, return to ambient conditions rapidly. The quick thermal response is helpful for process control and productivity. The quick response time is especially applicable in the semiconductor, aerospace, ceramic, and advanced metallurgy industries, where precision and consistency is paramount.

In order to provide an optimal solution for long life, the graphite rods can be treated or coated in order to maintain oxidation resistance during short durations in air, and when starting up, or shutting down a furnace. Semicorex provides high quality graphite rod heaters made with ultra-fine grain graphite with varying levels of purification, finishes and machining tolerances to ensure compatibility with vacuum furnace systems.

In general, the installation and safety aspects of a graphite rod heater is that it will be mounted in a hot zone of a furnace and will be held by insulating supports or fixtures to keep the heaters away from other structures so as to not create short-circuits. All graphite is electrically conductive and has fast thermal conductivity, so graphite rod heaters are designed to work with and to have the proper electricity control and safety systems to avoid overloading and creating a uniform heat.
