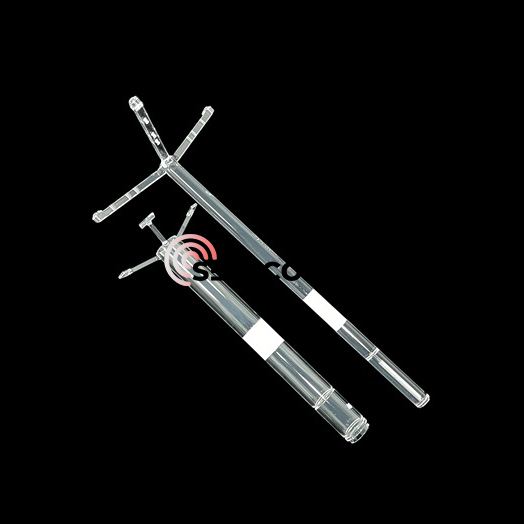

Epitaxial Quartz Shaft

In the demanding environment of semiconductor wafer processing, precision is not merely an operational goal—it is a manufacturing imperative. Semicorex Epitaxial Quartz Shafts are engineered to meet the stringent requirements of modern epitaxial growth systems, providing the reliable mechanical interface necessary for complex thin-film deposition processes. Designed for high-temperature stability, chemical inertness, and structural precision, these quartz components serve as the critical linkage between sophisticated automation systems and the wafer susceptor environment.

Engineering Excellence and Material Integrity

The performance of an epitaxial process—such as Chemical Vapor Deposition (CVD)—relies heavily on the consistency of the thermal and mechanical environment surrounding the wafer. Our epitaxial quartz shafts are manufactured from ultra-high-purity synthetic quartz, selected for its superior resistance to thermal shock and its ability to maintain structural integrity at the elevated temperatures characteristic of epitaxial growth.

Key technical characteristics include:

Thermal Stability: Optimized for rapid thermal cycling, ensuring that the shaft remains dimensionally stable despite constant exposure to the intense heat zones of the reactor chamber.

Purity: Fabricated from high-purity materials to minimize outgassing and contamination, thereby protecting the purity of the wafer surface during critical deposition stages.

Structural Precision: Each shaft is machined to exacting tolerances, ensuring perfect alignment within the reactor’s lifting mechanism. This mechanical accuracy is vital for maintaining the concentricity of the susceptor, which directly correlates to film thickness uniformity across the wafer surface.

Functional Applications in Epitaxial Systems

The primary role of the Epitaxial Quartz Shaft is to act as the actuation backbone within the process chamber, facilitating the vertical movement and positioning of the susceptor or wafer carrier. By integrating seamlessly with the reactor’s drive system, these shafts provide:

Precise Vertical Positioning: During multi-step processes, the distance between the wafer surface and the gas distribution head is a critical parameter. Our shafts allow for the micro-adjustment of the susceptor height, ensuring that the chemical environment is optimized for each specific stage of the process, from initial pre-bake to final layer growth.

High-Speed Transfer Support: In high-throughput manufacturing environments, the ability to rapidly move the susceptor between various stations is essential. The epitaxial quartz shaft provides the robust, lightweight support necessary for high-speed robotic loading and unloading cycles without sacrificing positioning accuracy.

Process Reproducibility: By ensuring the sample holder remains in a stable and repeatable position, our shafts eliminate mechanical variance. This repeatability is a cornerstone of achieving uniform epitaxial layer deposition and high device yields across consecutive production batches.

Quality Commitment and Manufacturing Standards

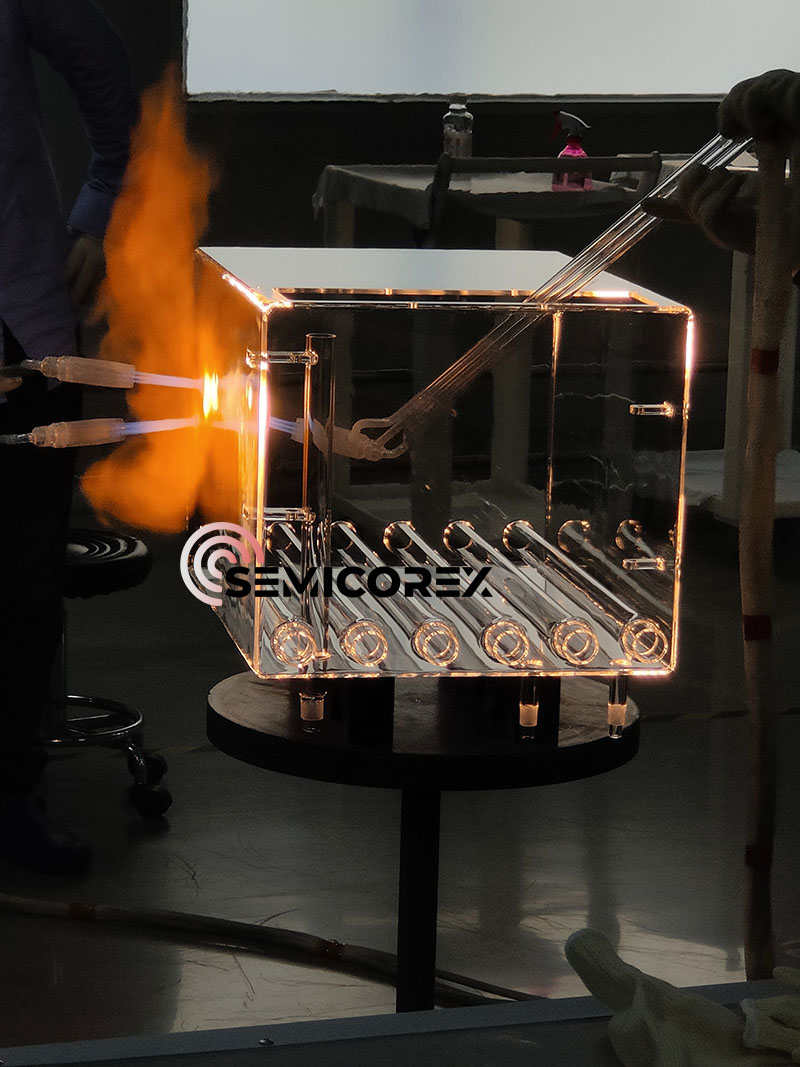

At Semicorex, we understand that the failure of a single process component can lead to costly downtime or wafer loss. Our manufacturing process utilizes advanced glass-blowing and precision machining techniques to ensure that every shaft is free of internal stress points that could lead to premature failure. Every component undergoes rigorous quality control inspections, including dimensional validation and material purity assessments, to ensure compatibility with industry-standard epitaxial reactors.

By choosing our high-performance Epitaxial Quartz Shafts, semiconductor manufacturers can enhance the reliability of their wafer handling systems, optimize throughput, and maintain the stringent deposition standards required for next-generation semiconductor devices. We are dedicated to providing the technical components that drive the evolution of semiconductor technology through precision, durability, and superior material science.
