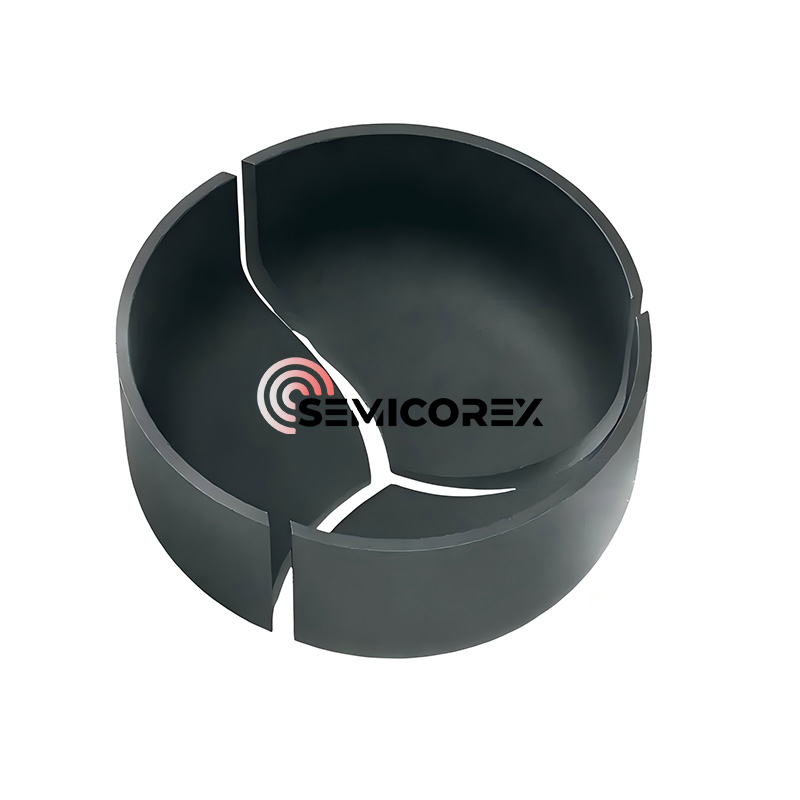

Three-petal Graphite Crucible

Semicorex Three-petal Graphite Crucible (also known as a three-part or segmented graphite crucible) represents a significant engineering advancement in the thermal processing of advanced semiconductor materials. Precision-machined from ultra-high-purity isostatic graphite, this specialized vessel is meticulously designed to withstand the extreme thermal and chemical environments of next-generation crystal growth, particularly for Silicon Carbide (SiC) sublimation via Physical Vapor Transport (PVT) and monocrystalline silicon ingot production.

Unlike traditional one-piece monolithic crucibles, the innovative three-petal segmented architecture provides superior mechanical relief, allowing the crucible to expand and contract uniformly under rapid thermal cycles without cracking or stressing the growing crystal matrix.

Core Product Advantages & Engineering Excellence

1. Stress-Relieving Three-Petal Architecture

The signature three-segment split design is engineered to solve a common industry pain point: thermal expansion mismatch. During the extreme heating and cooling phases of semiconductor crystallization, monolithic crucibles often experience localized stress, leading to structural deformation or premature failure. The interlocking three-petal structure offers controlled microscopic flex, significantly reducing thermal stress, eliminating the risk of crucible cracking, and extending the operational lifespan of the component.

2. Ultra-High Purity Carbon Substrate

Contamination is the ultimate enemy of high-yield semiconductor growth. Our three-petal crucibles undergo strict chemical and thermal purification processes to reduce ash and trace metal content to less than 5 ppm. This ensures an exceptionally clean environment inside the furnace, preventing volatile impurity diffusion into the melt or vapor phase, and preserving the electrical integrity of the final wafer chip.

3. Exceptional Thermal Profile Uniformity

Achieving a flawless single-crystal structure requires precise control over thermal gradients. The high thermal conductivity of our selected isostatic graphite grade guarantees rapid, uniform heat transfer across all three segments. This uniform thermal profile eliminates localized "hot spots," promoting a perfectly flat solidification front and minimizing defects like dislocations in the growing crystal ingot.

4. Advanced Surface Coatings (Optional)

To meet the grueling demands of SiC crystal pulling—where temperatures exceed $2000^\circ\text{C}$ in highly corrosive environments—these crucibles can be enhanced with specialized Tantalum Carbide (TaC) or Silicon Carbide (SiC) chemical vapor deposition (CVD) coatings. This protective barrier provides unmatched resistance against reactive gas erosion and prevents carbon outgassing.

Primary Applications

Our Three-petal Graphite Crucibles are widely implemented across advanced industrial hot zones:

Silicon Carbide (SiC) Crystal Growth: Vital for wide-bandgap power electronics used in electric vehicles (EVs) and green energy grids.

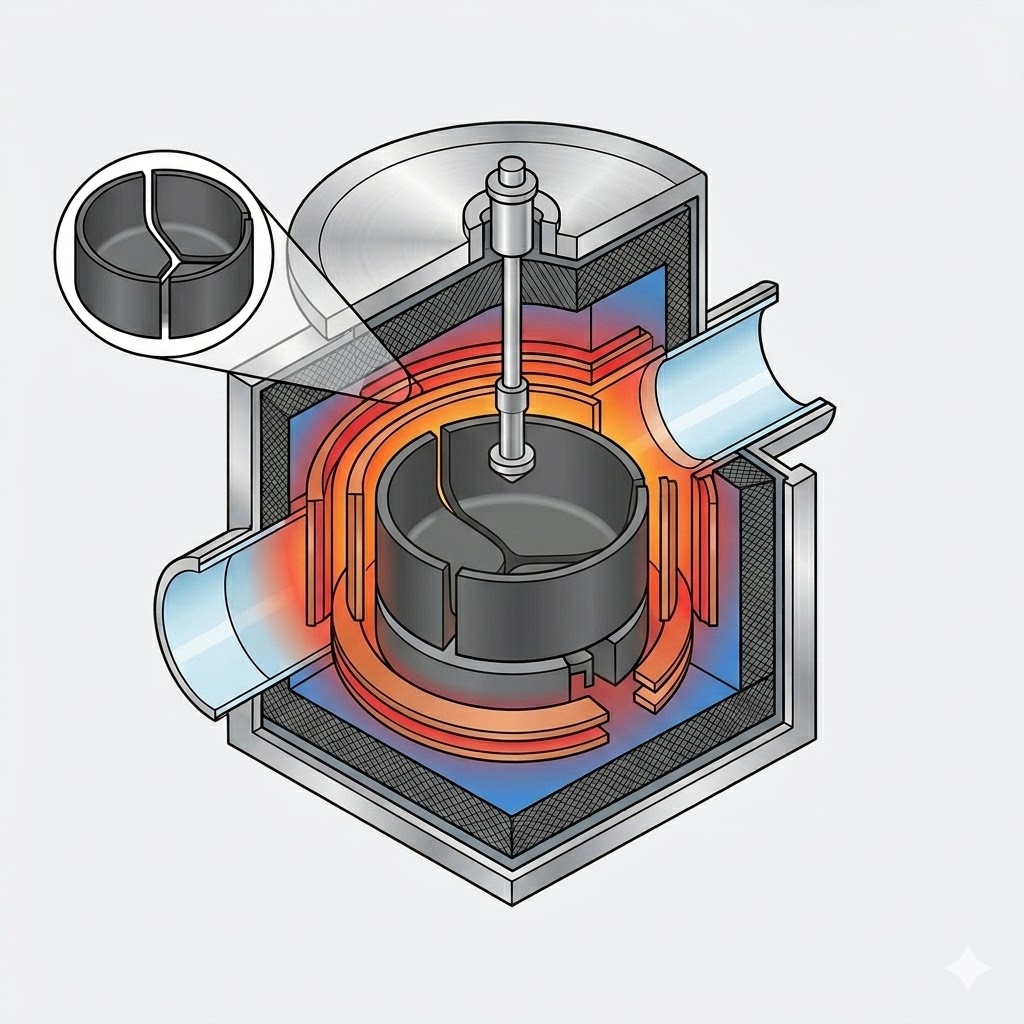

Czochralski (CZ) & PVT Methods: Ideal as a high-strength outer supporting shell or direct containment vessel within high-temperature induction or resistance furnaces.

Compound Semiconductor Synthesis: Suitable for high-purity processing of next-gen substrate materials.

As a leading provider of advanced material solutions for the semiconductor industry, our manufacturing processes are tightly controlled via fully automated systems. Each Three-petal Graphite Crucible undergoes rigorous non-destructive testing, precision coordinate measurement inspections, and strict purity validation. We deliver predictable, highly repeatable thermal performance, allowing semiconductor fabs to maximize yield, reduce downtime, and lower the overall cost of ownership.
