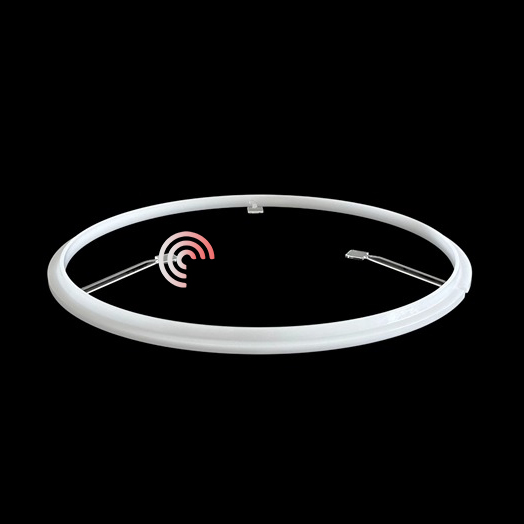

Support Ring

Semicorex Support Ring is an important mechanical component used in single-wafer epitaxy systems, where precise wafer handling and positioning are essential for process stability and production efficiency. Designed to work in coordination with the lift shaft assembly, the Support Ring enables controlled wafer elevation during loading and unloading operations, ensuring reliable wafer transfer between the process chamber and robotic handling systems.

Manufactured from high-purity advanced quartz materials, the Support Ring is engineered to operate in demanding semiconductor environments characterized by elevated temperatures, corrosive process gases, and strict contamination-control requirements. Its precision geometry and robust construction help maintain consistent wafer positioning while supporting automated wafer handling throughout the epitaxial growth process.

Function in Single-Wafer Epitaxy Systems

During wafer processing, the wafer typically rests on a susceptor inside the reaction chamber. When the process cycle is completed and the wafer needs to be transferred, the lift mechanism is activated.

As the lift shaft moves downward, the three support tabs of the quartz Support Ring engage and support the lift pins connected to the shaft assembly. These lift pins then move upward relative to the wafer surface, gently raising the wafer from the susceptor. Once elevated, the wafer is positioned at a transfer height that allows the robotic arm to safely enter the chamber and retrieve the wafer.

This carefully coordinated movement ensures:

* Stable wafer lifting without excessive vibration

* Accurate wafer positioning during transfer

* Reduced risk of wafer edge damage

* Improved automation reliability

* Consistent handling performance across multiple process cycles

The Support Ring therefore plays a vital role in maintaining both wafer integrity and equipment throughput.

Precision Design for Automated Wafer Transfer

Modern semiconductor manufacturing requires increasingly precise wafer handling. Even minor deviations in wafer position can affect robotic alignment and process repeatability.

The Support Ring is designed with accurately machined support features that provide uniform load distribution across the lift pin system. The three support tabs maintain stable engagement with the lift mechanism, minimizing movement and ensuring predictable lifting behavior.

Key design benefits include:

* Precise lift-pin support geometry

* Excellent dimensional stability

* Smooth mechanical interaction with the lift assembly

* Reliable positioning during repeated operation

* Reduced mechanical wear on mating components

These characteristics contribute to enhanced system uptime and lower maintenance requirements.

Custom Engineering Capabilities

Different epitaxy platforms often require unique geometries, dimensions, and lift-pin configurations. Semicorex provides customized Support Ring solutions tailored to customer equipment specifications.

Customization options include:

* Various diameters and thicknesses

* Custom support-tab configurations

* Different lift-pin engagement designs

* Process-specific material selections

* Tight-tolerance precision machining

This flexibility enables seamless integration into both existing equipment and next-generation reactor platforms.

Applications

Support Rings are commonly used in:

* Silicon epitaxy systems

* Silicon carbide (SiC) epitaxy reactors

* Gallium nitride (GaN) processing equipment

* Single-wafer CVD systems

* Advanced semiconductor wafer handling platforms

Their role is particularly important in automated manufacturing environments where precise wafer positioning directly impacts production efficiency and yield.

Quality and Reliability

Semicorex applies rigorous quality-control procedures throughout manufacturing to ensure dimensional accuracy, material consistency, and long-term reliability. Every Support Ring is produced to meet the demanding standards of the semiconductor industry, where component performance directly influences process stability and equipment productivity.
