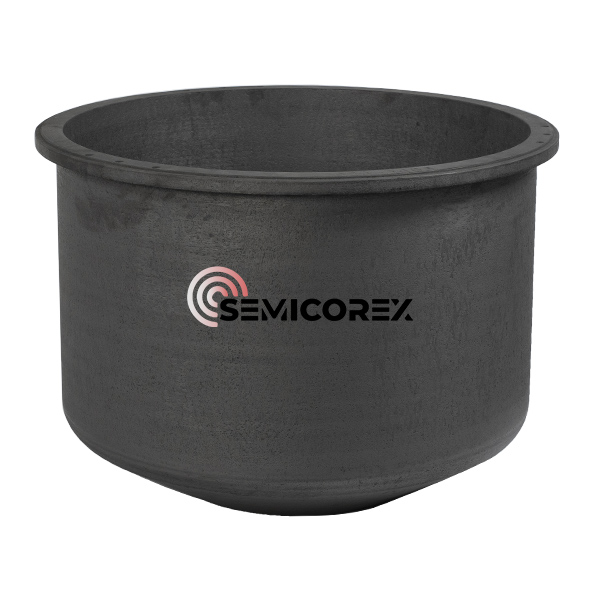

Outer Guide Tube

Semicorex Outer Guide Tube is a critical thermal management and flow-guiding component engineered for high-performance silicon crystal growth processes. Manufactured from advanced carbon/carbon (C/C) composite materials, this guide tube plays an essential role in establishing a stable and controllable thermal gradient field, which is fundamental to achieving high-quality crystal formation in photovoltaic (PV) and semiconductor applications.

Designed for use in high-temperature crystal growth furnaces, the Outer Guide Tube surrounds and directs heat flow within the thermal field. Its primary function is to regulate the distribution of thermal energy, ensuring uniform temperature gradients that directly influence crystal structure, defect density, and overall yield. The optimized geometry and material properties of the guide tube allow for precise control of convection and radiation heat transfer during processes such as directional solidification and Czochralski crystal growth.

Core Functions and Process Optimization

The primary role of the Outer Guide Tube is to manage the gas flow and thermal radiation within the furnace. During the growth of monocrystalline silicon, maintaining a stable temperature gradient is essential for controlling the solid-liquid interface.

Thermal Field Construction: By acting as a thermal barrier and flow director, the C/C guide tube helps maintain a precise "gradient thermal field." This ensures that heat is distributed uniformly where needed while protecting the growing crystal from turbulent argon gas

 or volatile impurities like Silicon Monoxide (SiO).

Impurity Control: In the PV industry, high purity is non-negotiable. Our C/C composites are treated with advanced purification processes to ensure they do not introduce metallic or chemical contaminants into the melt, directly supporting the production of N-type and P-type high-efficiency solar cells.

Key Material Properties:

Density: ≥ 1.35 g/cm³

Flexural Strength: ≥ 110 MPa

Coefficient of Thermal Expansion (CTE): ≤ 1.0 × 10⁻⁶ /K

Thermal Conductivity (Room Temperature): ≤ 10 W/(m·K)

The low thermal expansion coefficient ensures dimensional stability under rapid temperature changes, minimizing deformation and maintaining precise alignment within the furnace. Meanwhile, the controlled thermal conductivity supports the formation of a well-defined thermal gradient, which is crucial for consistent crystal growth.

Expertise in Photovoltaic Applications

With years of expertise in high-temperature composite technologies, Semicorex understands the nuances of the photovoltaic value chain. Our Outer Guide Tubes are not just "parts"; they are precision-engineered solutions that contribute to higher crystallization rates and lower oxygen content in silicon ingots.

By adhering to strict quality control and leveraging the unique properties of carbon fiber reinforcement, we provide the PV industry with components that withstand the test of time and heat. Whether you are scaling up for large-diameter wafers or optimizing for high-purity N-type silicon, our C/C Outer Guide Tube provides the reliability and performance required to stay competitive in the global market.
