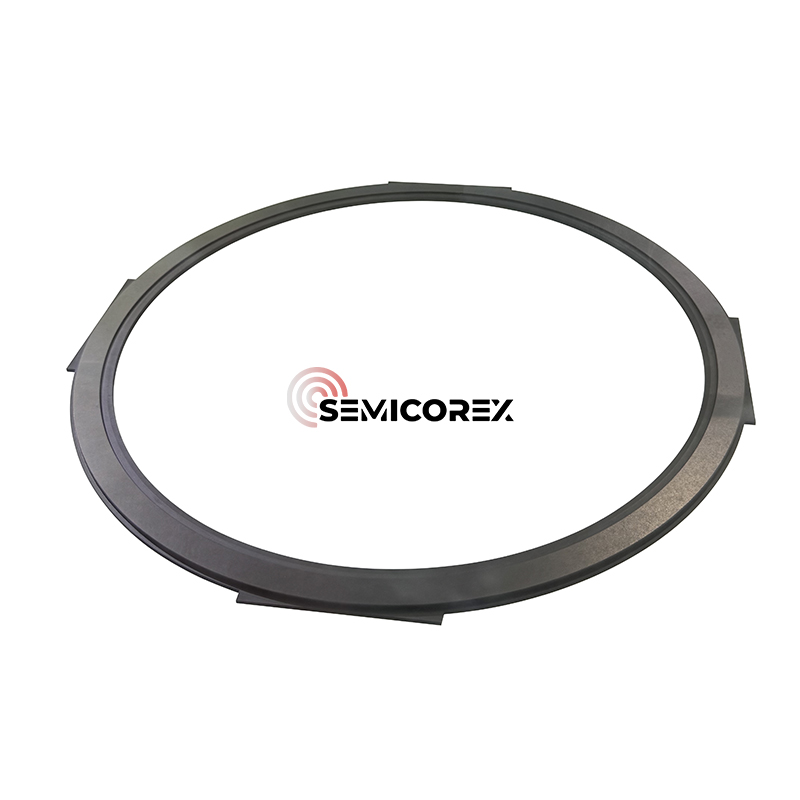

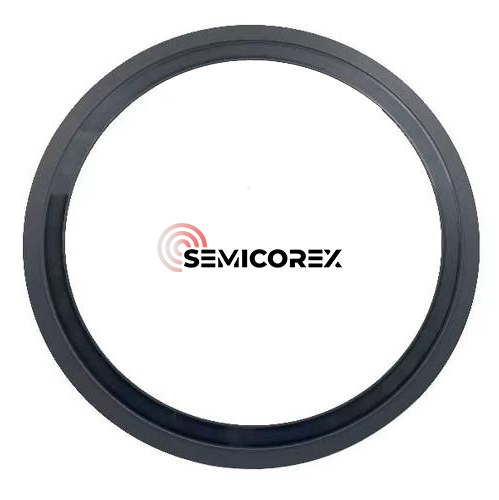

Etching Edge Ring

Semicorex Etching Edge Ring is a key plasma-facing component designed to optimize ion distribution and maintain process uniformity across the wafer surface. Manufactured from ultra-high-purity Chemical Vapor Deposition (CVD) Silicon Carbide (SiC), this component directly interacts with the plasma environment and plays an essential role in controlling etch performance.

Semicorex provides high-performance CVD SiC Etching Edge Rings, including focus rings, RF grounding rings, and showerhead-related plasma control components, engineered for advanced semiconductor etching systems.

Why Edge Rings Matter in Plasma Etching

During plasma etching, energetic ions and reactive species are accelerated toward the wafer surface to selectively remove material layers. Without proper plasma control, electric field distortion can occur around the wafer edge, resulting in non-uniform etching profiles, inconsistent critical dimensions, and reduced device yield.

The Etching Edge Ring is positioned around the wafer perimeter and serves as a critical field-shaping component. By regulating plasma distribution and controlling edge effects, it helps ensure that etching conditions remain consistent across the entire wafer.

Its primary functions include:

Plasma confinement and stabilization

Electric field optimization

Edge profile control

Etch rate uniformity improvement

Process repeatability enhancement

These functions are increasingly important in advanced logic, memory, and power semiconductor manufacturing.

Direct Interaction with Plasma and Wafer Environments

Unlike structural chamber components that remain isolated from the process zone, the Etching Edge Ring operates directly within the plasma region and is often positioned adjacent to the wafer surface.

This close proximity allows it to influence plasma behavior in real time by:

Guiding ion trajectories

Focusing plasma energy into targeted process areas

Minimizing edge-related process variations

Improving pattern transfer accuracy

Supporting high-aspect-ratio etching applications

By concentrating plasma activity where it is needed most, the component contributes to both higher etch efficiency and improved feature precision.

Ultra-High-Purity CVD Silicon Carbide Construction

The harsh conditions inside plasma etch chambers demand materials capable of withstanding continuous ion bombardment, reactive chemistries, and thermal cycling.

CVD Silicon Carbide is widely regarded as one of the most suitable materials for these applications because of its unique combination of properties:

Ultra-high purity

Extremely low particle generation

Exceptional plasma resistance

High density and low porosity

Superior corrosion resistance

Outstanding thermal stability

The dense CVD SiC structure minimizes contamination while maintaining excellent dimensional stability during prolonged processing cycles.

These characteristics make CVD SiC the preferred material for advanced plasma-facing semiconductor components.

Focus Rings, Ground Rings, and Plasma Control Components

Etching Edge Ring assemblies may include several specialized component types depending on reactor design.

Focus Rings

Focus rings are designed to shape the plasma distribution surrounding the wafer. By balancing ion density at the wafer perimeter, they help achieve uniform etching from the center to the edge.

RF Ground Rings

Ground rings provide electrical grounding functionality within plasma systems. They contribute to stable chamber operation and improved plasma control while helping reduce process variation.

Showerhead and Plasma Distribution Components

CVD SiC components used within gas distribution and plasma management systems support consistent process conditions and chamber performance.

Together, these components create a highly controlled etching environment capable of meeting advanced manufacturing requirements.

Semicorex combines advanced CVD SiC deposition technology with precision machining capabilities to produce plasma-facing components with exceptional purity, dimensional accuracy, and durability.

Customization options include:

Various ring geometries

Custom diameters

Focus ring configurations

RF grounding designs

Application-specific plasma control features

Every component is manufactured under strict quality standards to meet the demanding requirements of semiconductor equipment manufacturers worldwide.
