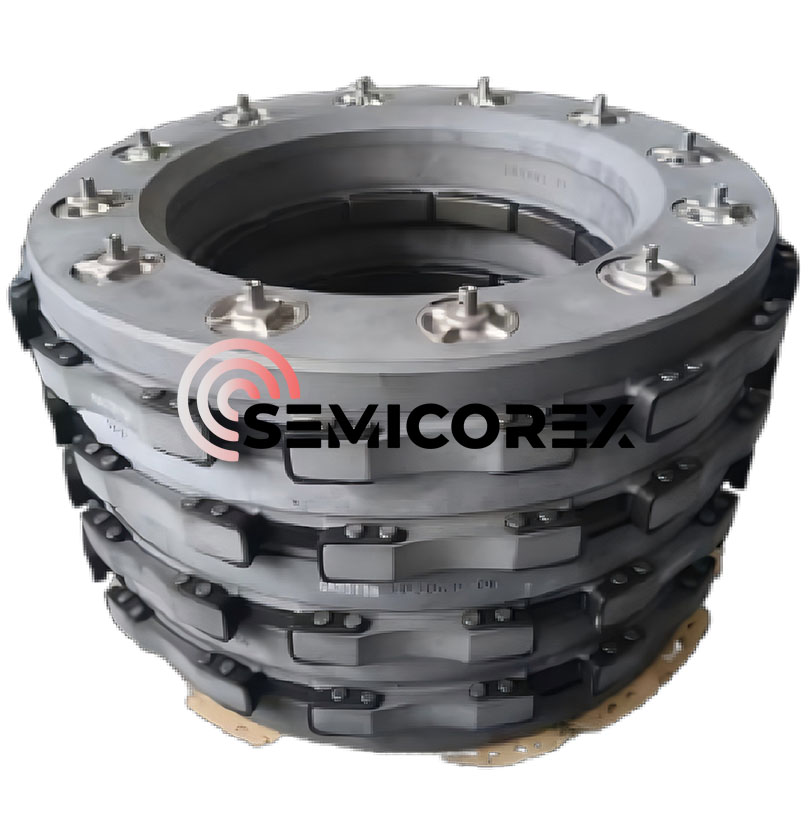

Aircraft Brake Heat Sink

Semicorex Aircraft Brake Heat Sink is a next-generation thermal and friction component engineered for advanced aviation platforms. Manufactured from carbon–carbon (C/C) composites, this heat sink is specifically designed to meet the demanding performance requirements of modern aircraft such as the Boeing 787. By combining lightweight construction with extreme thermal resistance and superior wear characteristics, it ensures reliable braking performance under the most challenging operational conditions.

Advanced Material Properties

Carbon–carbon composites are widely recognized in aerospace engineering for their ability to perform under extreme thermal and mechanical stress. The Aircraft Brake Heat Sink utilizes a carefully engineered carbon fiber reinforcement within a carbon matrix, resulting in a material with the following key characteristics:

Low Density (>1.7 g/cm³): Significantly reduces overall aircraft weight, contributing to improved fuel efficiency
High Specific Strength (>2000 MPa/(g/cm³)): Delivers exceptional mechanical performance relative to weight
Ultra-High Temperature Resistance (up to 3000°C): Maintains structural integrity under intense braking

Outstanding Friction and Wear Performance: Provides up to 20% longer service life compared to standard OEM components

These properties make C/C composites an ideal choice for high-energy braking systems in modern aircraft.

Function in Boeing 787 Braking Systems

The braking system of the Boeing 787 operates under extreme conditions, where rapid deceleration generates substantial heat due to friction between brake discs. The Aircraft Brake Heat Sink plays a critical role in this system by:

Absorbing and dissipating large amounts of thermal energy generated during landing

Maintaining consistent friction performance across varying conditions

Preventing thermal distortion that could affect braking efficiency

Supporting repeated braking cycles without degradation

Its ability to perform reliably in these conditions is essential for ensuring both safety and operational efficiency in commercial aviation.

Structural Design Approach

Unlike traditional solid heat sinks, this Aircraft Brake Heat Sink features a segmented, multi-disc architecture optimized for both thermal management and friction performance. The structure is designed to:

Maximize surface contact area for effective heat distribution

Enable efficient airflow between layers to enhance cooling

Provide uniform pressure distribution across the braking interface

Reduce thermal gradients that can lead to material fatigue

This optimized geometry not only improves heat dissipation but also contributes to smoother braking performance and reduced wear.

Performance Advantages in Operation

Enhanced Heat Dissipation: Rapidly transfers and releases thermal energy during braking events

Weight Reduction: Supports aircraft efficiency through lightweight composite construction

Extended Service Life: Improved wear resistance reduces maintenance frequency

Thermal Stability: Maintains consistent performance under repeated high-energy cycles

Operational Reliability: Ensures stable braking behavior across diverse environmental conditions

These advantages are critical for airlines seeking to improve safety margins while reducing operational costs.

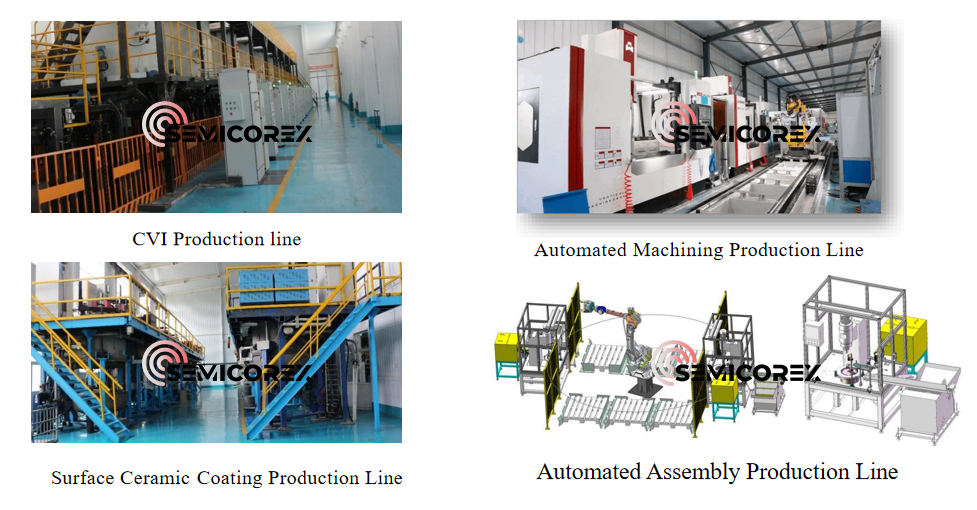

Manufacturing Expertise

Semicorex employs advanced densification and high-temperature processing techniques to produce carbon–carbon composites with consistent quality and performance. Each heat sink undergoes rigorous inspection to verify material integrity, dimensional accuracy, and structural reliability.

The manufacturing process is carefully controlled to ensure optimal fiber architecture and matrix uniformity, which are key to achieving the desired balance of strength, thermal conductivity, and wear resistance.

Application Scope

While primarily designed for the Boeing 787 platform, the Aircraft Brake Heat Sink is also suitable for:

Other wide-body and narrow-body commercial aircraft

Military aviation braking systems

High-performance aerospace applications requiring extreme thermal management

Its versatility makes it a valuable component across a range of aviation sectors.

Semicorex Aircraft Brake Heat Sink represents a high-performance solution for modern aviation braking systems. Leveraging the superior properties of carbon–carbon composites and an optimized structural design, it delivers exceptional thermal management, durability, and reliability. For aircraft such as the Boeing 787, it plays a vital role in ensuring safe, efficient, and long-lasting braking performance under the most demanding conditions.
