Detailed Explanation of Semiconductor CVD SiC Process Technology(Part.Ⅱ)

III. Gases Used in Chemical Vapor Deposition (CVD)

In the chemical vapor deposition (CVD) process for CVD SiC, also known as solid SiC, the gases used mainly include reactant gases and carrier gases. Reactant gases provide atoms or molecules for the deposited material, while carrier gases are used to dilute and control the reaction environment. Below are some commonly used CVD gases:

1. Carbon Source Gases: Used to provide carbon atoms or molecules. Commonly used carbon source gases include methane (CH4), ethylene (C2H4), and acetylene (C2H2).

2. Silicon Source Gases: Used to provide silicon atoms or molecules. Commonly used silicon source gases include dimethylsilane (DMS, CH3SiH2) and silane (SiH4).

3. Nitrogen Source Gases: Used to provide nitrogen atoms or molecules. Commonly used nitrogen source gases include ammonia (NH3) and nitrogen (N2).

4. Hydrogen (H2): Used as a reducing agent or hydrogen source, it helps reduce the presence of impurities such as oxygen and nitrogen during the deposition process and adjusts the properties of the thin film.

5. Inert Gases These are used as carrier gases to dilute the reactant gases and provide an inert environment. Commonly used inert gases include argon (Ar) and nitrogen (N2).

The appropriate gas combination needs to be selected based on the specific deposition material and deposition process. Parameters such as gas flow rate, pressure, and temperature during the deposition process also need to be controlled and adjusted according to actual requirements. Furthermore, safe operation and waste gas treatment are also important issues to consider in chemical vapor deposition (CVD) processes.

IV. Advantages and Disadvantages of Chemical Vapor Deposition (CVD)

Chemical vapor deposition (CVD) is a commonly used thin film preparation technique with several advantages and disadvantages. Below are the general advantages and disadvantages of CVD:

1. Advantages

(1) High Purity and Uniformity

CVD can prepare high-purity, uniformly distributed thin film materials with excellent chemical and structural uniformity.

(2) Precise Control and Repeatability

CVD allows for precise control of deposition conditions, including parameters such as temperature, pressure, and gas flow rate, resulting in a highly repeatable deposition process.

(3) Preparation of Complex Structures

CVD is suitable for preparing thin film materials with complex structures, such as multilayer films, nanostructures, and heterostructures.

(4) Large-Area Coverage

CVD can deposit on large substrate areas, making it suitable for large-area coating or preparation. (5) Adaptability to Various Materials

Chemical vapor deposition (CVD) is adaptable to a variety of materials, including metals, semiconductors, oxides, and carbon-based materials.

2. Disadvantages

(1) Equipment Complexity and Cost

CVD equipment is generally complex, requiring high investment and maintenance costs. Especially high-end CVD equipment is expensive.

(2) High-Temperature Processing

CVD typically requires high-temperature conditions, which may limit the selection of some substrate materials and introduce thermal stress or annealing steps.

(3) Deposition Rate Limitations

CVD deposition rates are generally low, and preparing thicker films may require a longer time.

(4) Requirement for High Vacuum Conditions

CVD typically requires high vacuum conditions to ensure the quality and control of the deposition process.

(5) Waste Gas Treatment

CVD generates waste gases and harmful substances, requiring appropriate treatment and emission.

In summary, chemical vapor deposition (CVD) offers advantages in preparing high-purity, highly uniform thin film materials and is suitable for complex structures and large-area coverage. However, it also faces some drawbacks, such as equipment complexity and cost, high-temperature processing, and limitations in deposition rate. Therefore, a comprehensive selection process is necessary for practical applications.

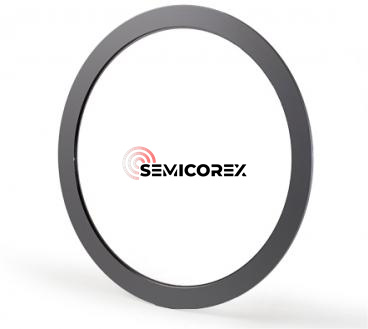

Semicorex offers high-quality CVD SiC products. If you have any inquiries or need additional details, please don't hesitate to get in touch with us.
